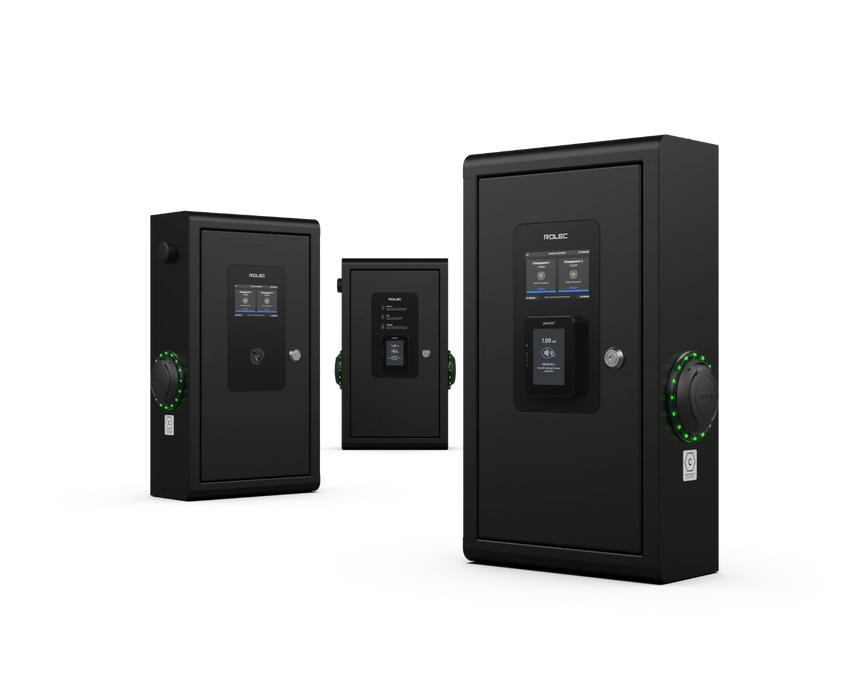

SecuriCharge Smart EV Charger with LCD Screen - 2x up to 22kW 3PH Type 2 Sockets - Black

The SecuriCharge Dual 22kW EV Charger is a powerful, wall-mounted charging solution built to thrive in commercial and high-traffic environments such as office car parks, retail spaces, and public charging hubs. Its vandal-resistant steel construction, IP54 weatherproof rating, and IK10 impact resistance make it perfect for exposed outdoor locations.

Designed for reliability and user convenience, this charger features two Type 2 sockets, each delivering up to 22kW of three-phase fast charging. It supports plug & charge, app control, or RFID card/fob access, with seamless compatibility across all OCPP 1.6 platforms like Monta, Fuuse, Wattif, and ChargePlace Scotland.

A built-in 5” LCD screen provides real-time charging feedback, while MID-approved energy metering ensures accurate usage data. PME fault detection, integrated Type A + 6mA DC protection, and dynamic load balancing make it safe, smart, and cost-effective to install.

Fully compliant with UK Smart Charge Point Regulations, the SecuriCharge includes tamper alerts, dual security notifications, and connectivity via 4G, Wi-Fi, or Ethernet. It also supports branding and colour customisation options for corporate or public-facing applications.

Technical Specification

• Download Product Technical Data Sheet

• Charging Output: Up to 22kW per socket (3-phase)

• Number of Charging Units: 2 x Type 2 Sockets

• Control Options: Plug & Charge, App, RFID Card/Fob

• Connectivity: 4G / Wi-Fi / Ethernet

• Display: 5” LCD screen showing live charging data

• Smart Features: OCPP 1.6, Dynamic & Static Load Balancing, MID-approved Metering

• Safety: PME Fault Detection, AC 30mA Type A & DC 6mA Protection

• Compliance: UK Smart Charge Point Regulations (tamper alerts & breach detection)

• Housing Material: Durable Steel Enclosure

• Weather & Impact Protection: IP54 Rated / IK10 Rated

• Dimensions: 320mm (W) x 155mm (D) x 575mm (H)

• Voltage Type: AC / 3-phase

• Frequency: 50/60 Hz

• Max Output Current (DC): 32A per socket

Ideal for organisations looking to deploy reliable, scalable EV infrastructure, the SecuriCharge offers a feature-rich, future-ready charging solution that balances durability, smart functionality, and user accessibility.
