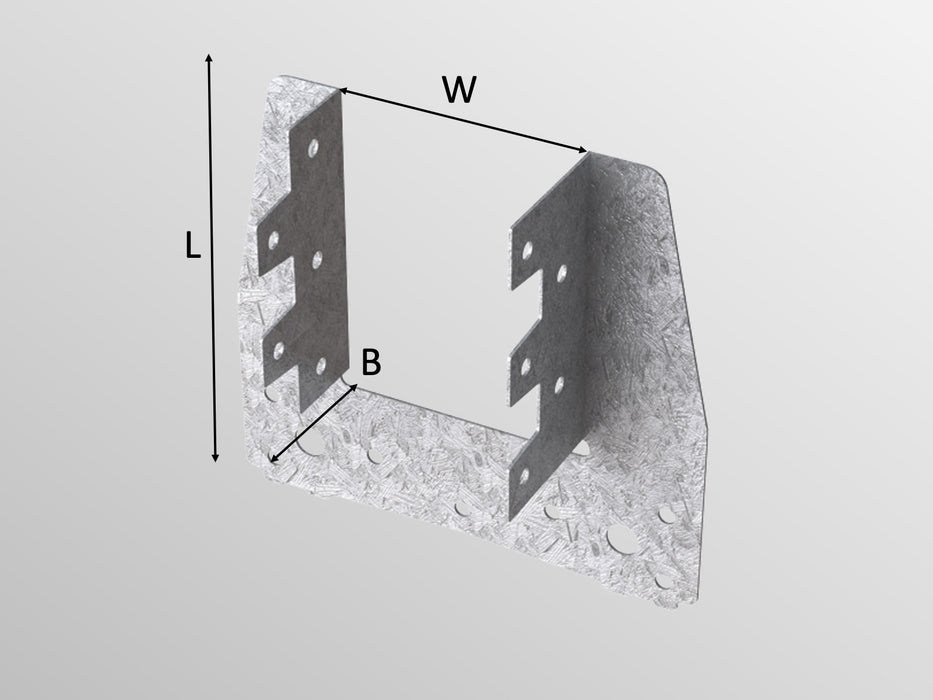

TC Truss Clips

TC Truss Clips are a cost-effective and reliable solution for securing trusses and rafters to wall plates, ensuring wind uplift restraint and eliminating the risk of damage from skew nailing. With a safe working load of 2.38kN uplift, these clips are designed to provide positive resistance against wind forces and improve structural stability. Recommended in BS 5268: Part 3, Truss Clips are also versatile enough to be used as multi-purpose connectors wherever two timber members intersect, making them ideal for a range of light-duty applications.

Technical Specification:

• Data Sheet
• Application: Wind restraint for trusses and rafters, or general timber-to-timber connections
• Load Capacity: Safe working load of 2.38kN uplift
• Material: Manufactured from 0.9mm thick galvanised steel to BS EN 10346:2009 +G275 (stainless steel available to order)
• Compliance: Recommended in BS 5268: Part 3 for trussed rafter to wall plate fixing
• Fixing Options:
  • Type A: 30mm x 3.75mm sheradised square twist nails (manual fixing)
  • Type B: 35mm x 3.75mm sheradised square twist nails (collated for nail gun fixing)
