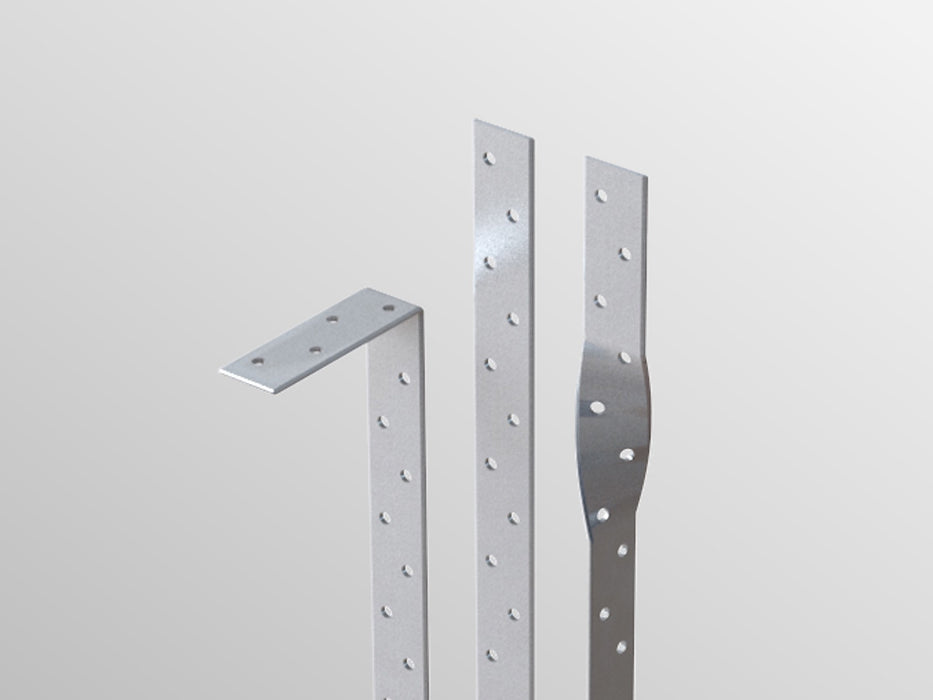

V Vertical (Light Duty) Restraint Straps (LDMH)

V Vertical (Light Duty) Restraint Straps (LDMH) are designed for secure vertical restraint applications, such as anchoring wall plates to masonry structures. Made from galvanised or stainless steel, these multi-holed straps offer reliable performance in both residential and commercial builds. Supplied in straight, bent, twisted, or combination forms, these straps ensure compatibility with a wide range of construction needs. Ideal for light duty applications, the LDMH straps meet UK building standards and provide a cost-effective solution for vertical structural reinforcement.

Technical Specification:

• Data Sheet
• Manufactured from galvanised or stainless steel
• Supplied in 100mm increments with 6mm holes at 25mm offset centres
• Standard product includes one bend or twist (additional bends/twists/fishtails charged extra)
• Increments under 100mm charged at the next full 100mm rate (e.g., 1050mm = 1100mm rate)
• Designed to BS5268 Part 3 and BS EN845-1 for compliance with UK Building Regulations
• Fixing options:
  • Vertical restraint: 50mm long no. 12 woodscrews (with wall plugs for masonry)
  • Timber fixings: 75mm x 4.0mm galvanised nails
  • Stainless steel fixings required with stainless steel straps
• Pack Size: Supplied in packs of 20
• Dimensions: 2.3mm thickness, 27mm width, lengths from 100mm to 3000mm in 100mm steps
• Load Bearing Capacity: 4 kN
