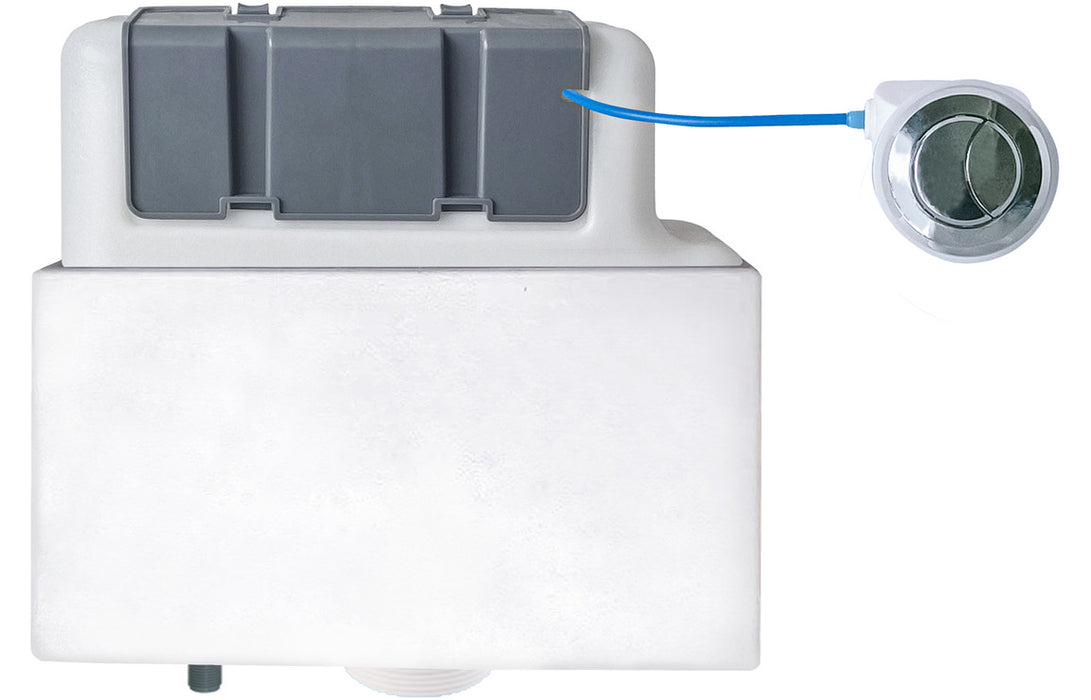

Concealed Cistern (Bottom Inlet)

The Concealed Cistern (Bottom Inlet) is a compact and efficient solution designed for use with modern back-to-wall or WC furniture units. Crafted from durable ABS, this cistern combines practicality with water-saving performance. It features a dual-flush mechanism for efficient water use, a polystyrene sleeve to prevent condensation, and both front and top access for easy maintenance. The included chrome push button adds a sleek finish, while the adjustable flush pipe allows for a precise fit. WRAS-approved components ensure reliability and compliance with UK standards. Backed by a 2-year guarantee, this cistern delivers lasting quality and discreet functionality for contemporary bathrooms.

Technical Specification

• Installation Manual
• Brand: TSO Bathrooms
• Finish: White
• Product Type: Concealed Cistern
• Type: Bottom Inlet
• Material: ABS
• Design: Compact, Dual Flush, Front & Top Access

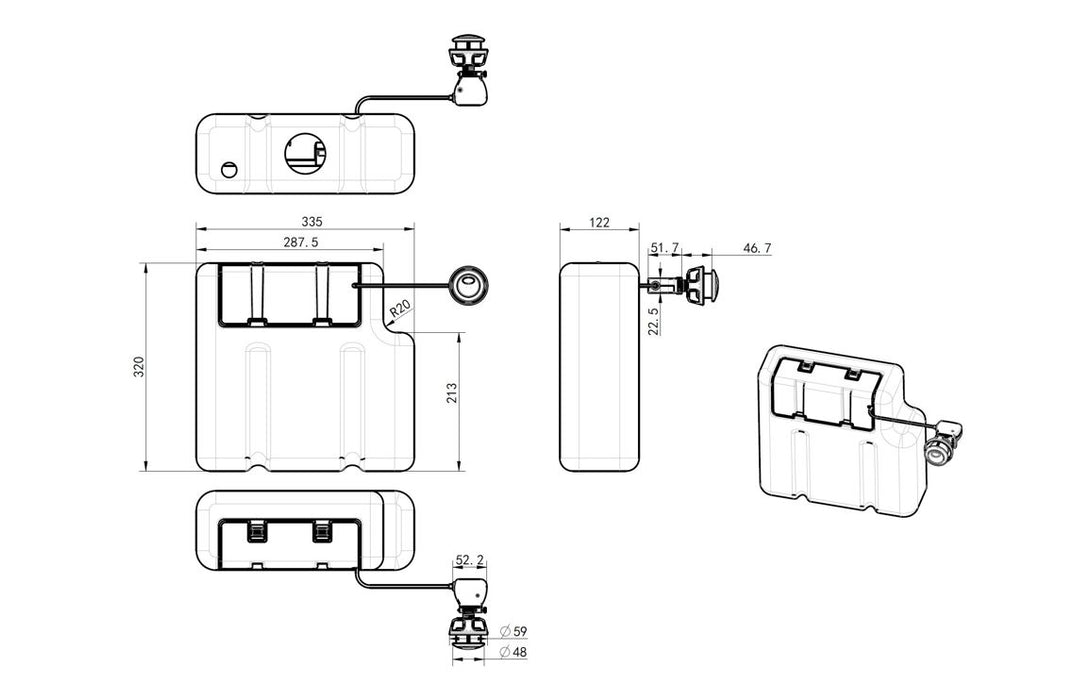

• Dimensions: H 320 x W 336 x D 140 mm
• Compatibility: Push Buttons DIAC0204, DIAC0206, DIAC0422 & DIAC0226
• Exclusions: Not compatible with flushplates or Amyris Back to Wall Pan (DIPTP030) when coupled with Lambra WC Units
• Inlet Type: Bottom Inlet
• Flush Operation: Chrome Push Button (Dual Flush)
• Special Features: Polystyrene Sleeve to Prevent Condensation
• Approvals: WRAS Approved Flushing Valve & Fittings
• Packaged Weight: 2 kg
• Warranty: 2 Years
• EAN: 5054913484155
