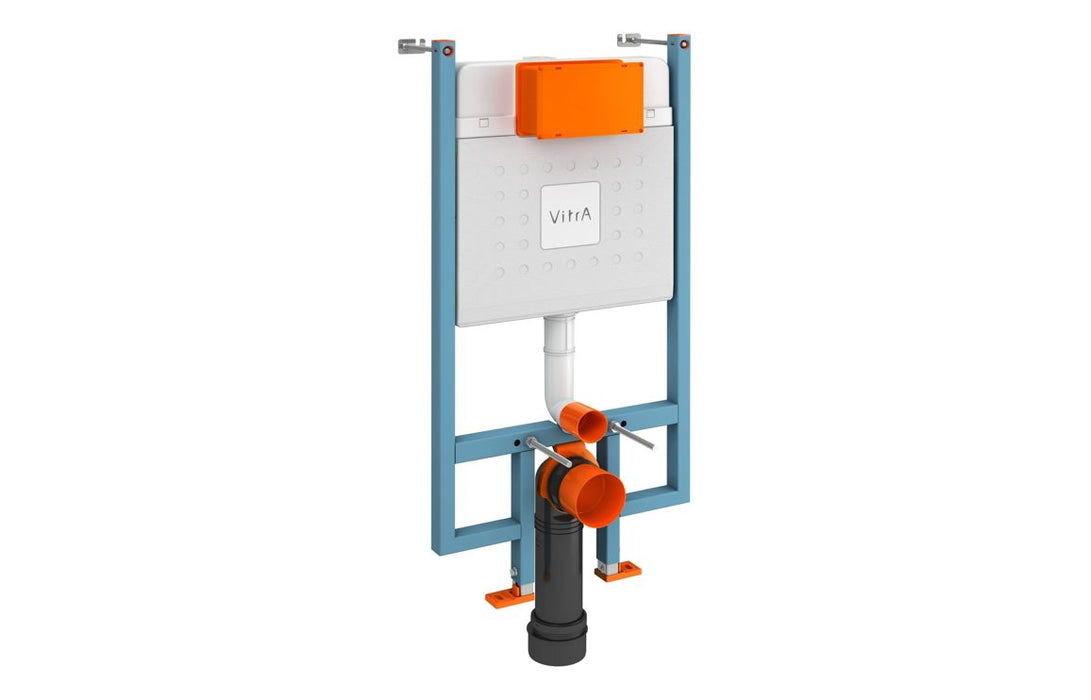

VitrA V-Fix Core WH 8cm 3/6L WC Frame & Cistern

The VitrA V-Fix Core WH 8cm 3/6L WC Frame & Cistern provides a reliable, space-saving solution for installing wall-hung toilets with ease and durability. Designed with precision engineering, this slim 8cm concealed frame offers exceptional strength and stability while maintaining a sleek, minimalist look.

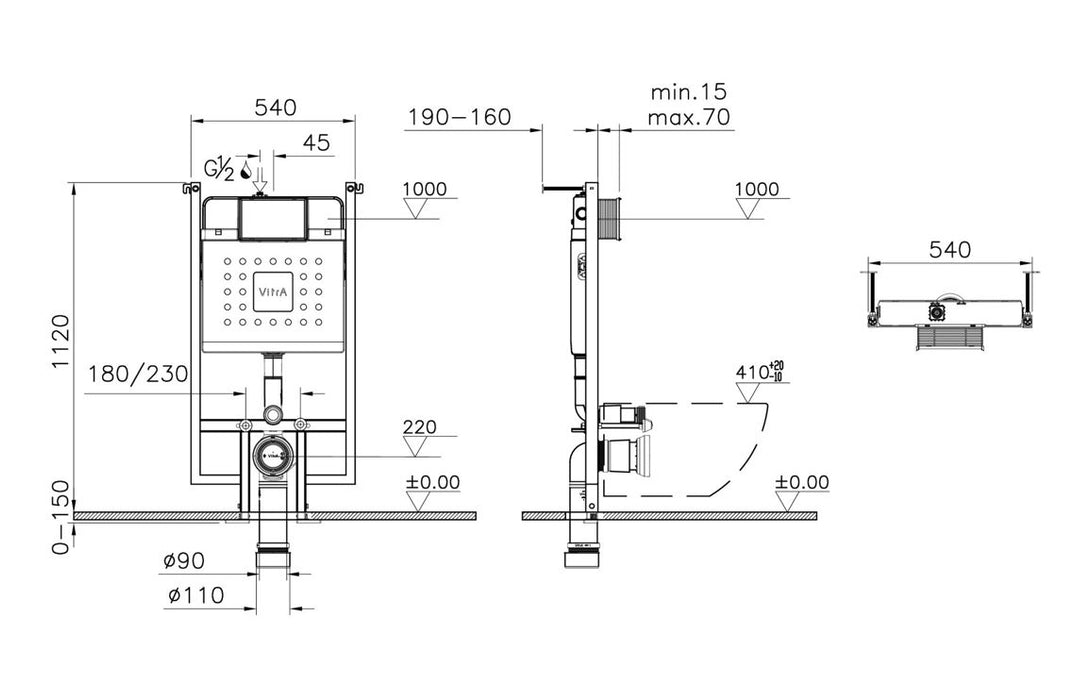

• Dimensions: H 1120mm x W 540mm x D 120mm
• VitrA V-Fix Frames are an essential component of any modern bathroom, providing strong and reliable support for wall-hung toilets without the need for costly structural modifications. Designed with versatility in mind, the V-Fix range offers complete flexibility to suit any project.The reduced-height frame is ideal for bathrooms where space is limited or where there’s a sloping ceiling or low window. Suitable for solid, stud, and double-stud wall installations, these frames are available with a choice of flushing volumes, ensuring both convenience and efficiency.
• Weight-bearing up to 400kg.
• Fuss-free maintenance, keeping your walls intact. Simply remove the flush plate for access.
• Proven reliable after 200,000 flushes. Giving you around 90 years of flushing guaranteed.
• Comes with a 10 Years Guarantee

Technical Specification

• Height (mm): 1120
• Width (mm): 540
• Depth (mm): 120
• Barcode (EAN): 5054913592447
• Manufacturers Guarantee: 10 Years
• Brand: VitrA
• Range: V-Fix Core
• Material: Metal
• Product Type: Concealed Cistern & Frame
• Supplier Code: 738-5800-01
• Type: Wall Hung WC Frame

Downloads

Exploded Diagram  click here
