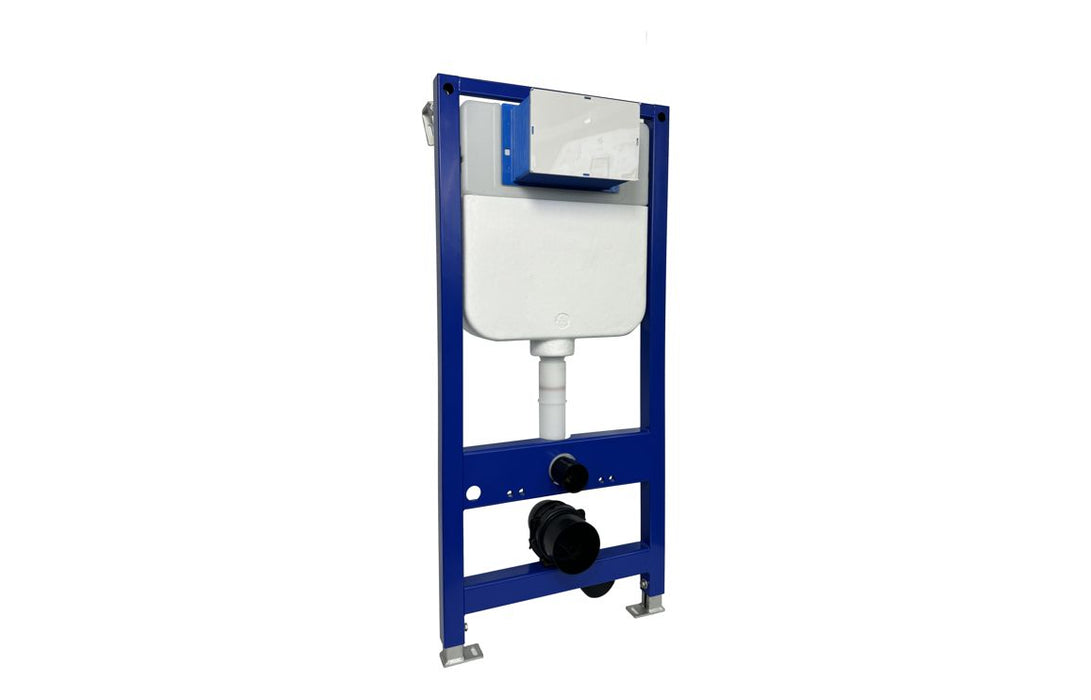

Wall Hung WC Frame (inc. Cistern)

The Wall Hung WC Frame (inc. Cistern) provides a durable and space-efficient solution for modern bathrooms. Designed for wall-hung pans, this adjustable steel frame ensures secure installation and a clean, minimalist finish. The integrated slim dual-flush cistern (6/4L) is front-accessible for easy maintenance and includes WRAS-approved fittings for reliability. With an adjustable height range between 1080–1380mm and a depth of 110–170mm, it offers flexibility during installation. Compatible with all TSO flushplates (sold separately), this frame delivers strength, functionality, and water efficiency — backed by a 3-year manufacturer’s guarantee.

Technical Specification

• Installation Manual
• Brand: TSO Bathrooms
• Product Type: Frame
• Type: Wall Mounting WC Frame (with Cistern)
• Style: Contemporary
• Finish: White

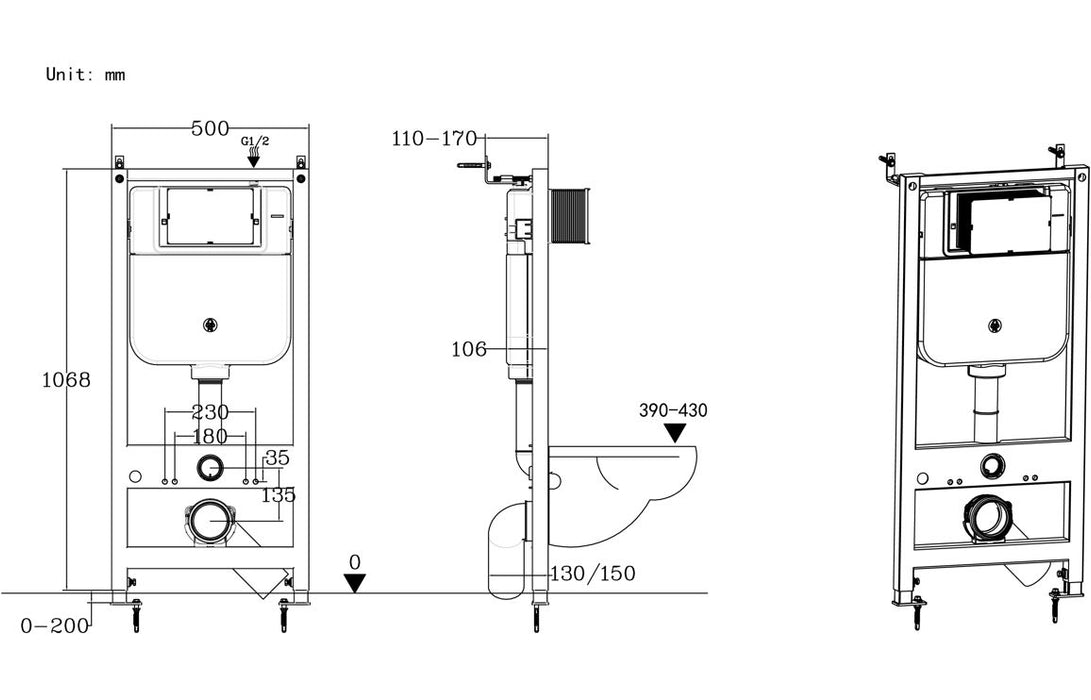

• Dimensions: H 1068 x W 500 x D 110–170 mm
• Height Adjustment: 1080–1380 mm
• Flush Volume: 4/6L Dual Flush
• Access: Front Accessible
• Compatibility: Suitable for Wall Hung Pans, Compatible with All TSO Flushplates
• Exclusions: Not Compatible with WC Furniture Units
• Approvals: WRAS Approved Fittings
• Packaged Weight: 17.2 kg
• Warranty: 3 Years
• EAN: 5054913515217
