V60T 28/15 Tanged Back Channel

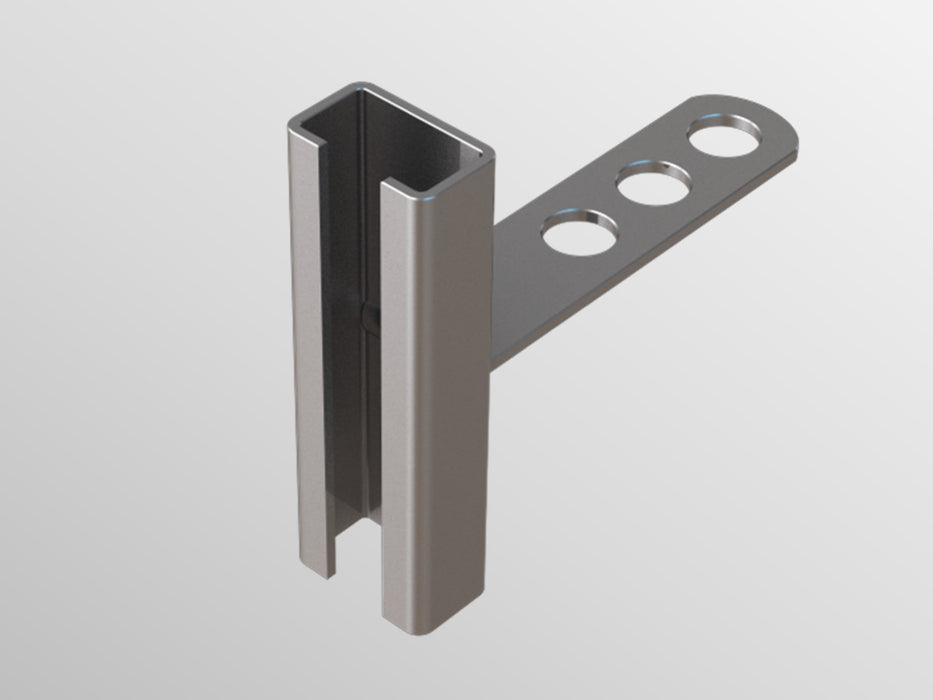

The VV60T 28/15 Tanged Back Channel is designed for secure integration into concrete pours or brick/blockwork installations. Its tanged design ensures a strong mechanical fix, making it ideal for use with masonry ties to effectively restrain brickwork. Polystyrene infill is available on request to prevent concrete ingress and maintain channel integrity.

Technical Specification

• Data Sheet
• Technical Drawing
• Design – 28/15 tanged back channel for casting into concrete or building into brick/blockwork. Polystyrene infill available upon request. Used in conjunction with ties to restrain brickwork.
• Material – Manufactured from grade 304 stainless steel.
• Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
• Durability – Excellent corrosion resistance and a service life of not less than 60 years.
• Specification – Available for specification on the NBS Source platform.
