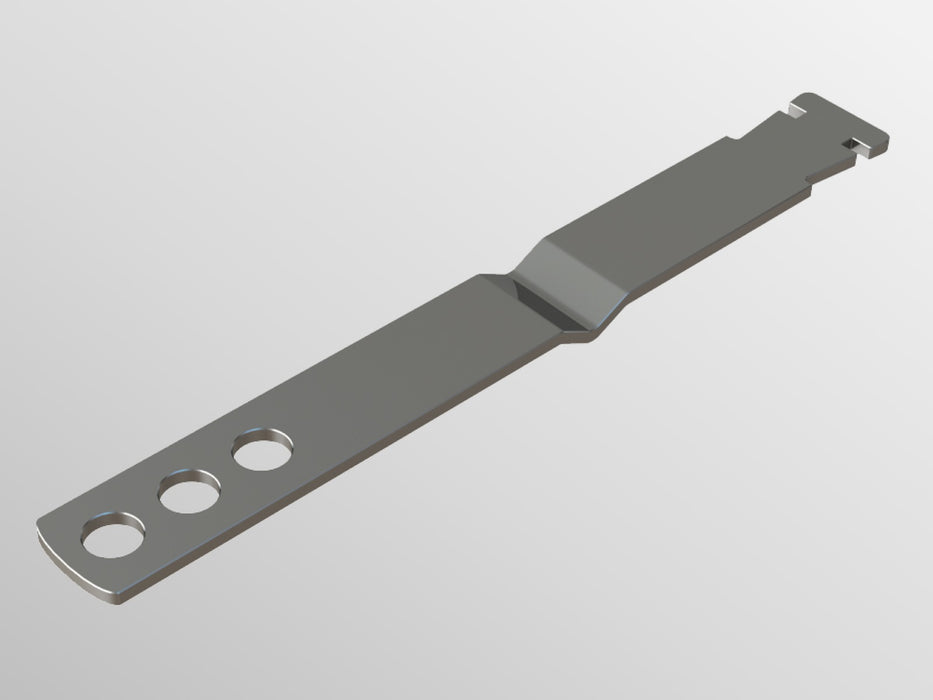

VS8D Dovetail Safety Ties with Drip

The VS8D Dovetail Safety Ties with Drip are engineered for robust performance in cavity wall construction. Designed with a universal head, they are compatible with all V60 channel systems and V29 slots, ensuring flexible application for restraining brickwork. Each tie is equipped with an integrated drip, positioned 90mm from the safety end as standard, effectively preventing moisture from bridging the cavity. Manufactured from premium grade 304 stainless steel, these ties deliver superior durability, corrosion resistance, and are suitable for use in all building types where long-term performance is critical.

Technical Specification

• Data Sheet
• Technical Drawing
• DOP
• Design: The universal head enables this tie to be used with all V60 channel systems and V29 slot to restrain brickwork supplied with a drip to prevent the passage of moisture across cavity. Drip positioned 90mm from safety end as standard.
• Material: Manufactured from grade 304 stainless steel.
• Behaviour in relation to fire: Non combustible (as defined in the national Building Regulations).
• Durability: Excellent corrosion resistance and a service life of not less than 60 years.
• Specification: Available for specification on the NBS Source platform.
