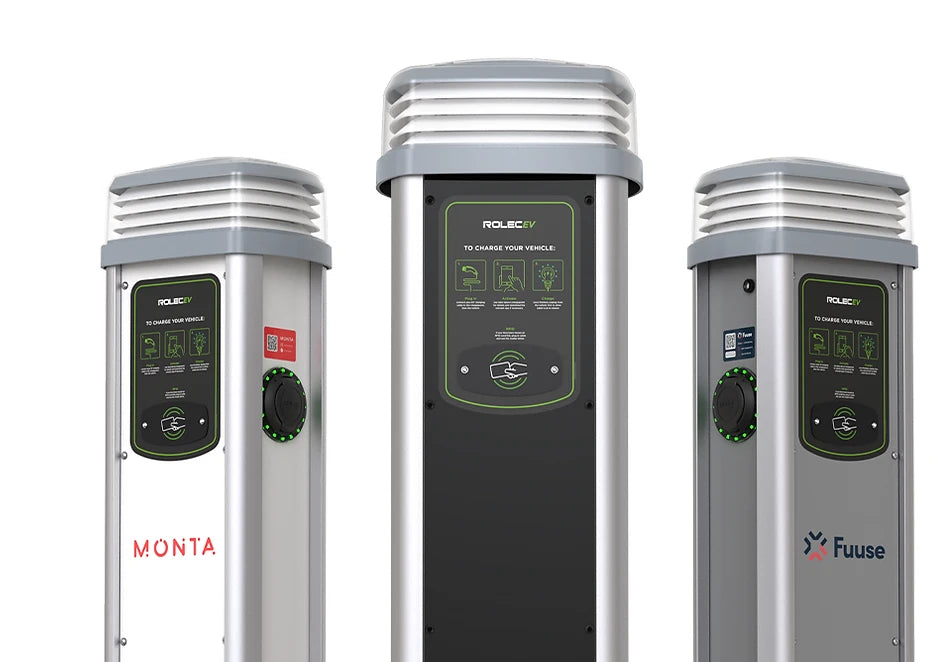

Quantum EV Charging Pedestal Three Phase Black 2x Type 2 (IEC 62196) charging sockets Up to 22kW (32A) per socket 1x 63A 400V AC

The Quantum EV Charging Pedestal is a premium, heavy-duty electric vehicle charging solution designed for both public and commercial environments. With a sleek, modern black finish and durable aluminium housing, it combines robust construction with intelligent charging features. This versatile dual-socket pedestal supports up to 22kW per socket and features integrated LED lighting for added visibility and safety.

Fully OCPP 1.6 compliant, the Quantum pedestal supports plug & charge, RFID authentication, or mobile app-based access, making it adaptable to any EV infrastructure strategy. Its TruePEN PME fault detection removes the need for an earth rod, simplifying installation. Designed for reliability and user convenience, it includes cable lock functionality and built-in RFID readers for secure charging control.

Ideal for commercial properties, business parks, residential developments, and high-traffic public locations, the Quantum pedestal delivers powerful performance with a future-proof design.

Technical Specification

• Download Product Technical Data Sheet

• Voltage Type of Supply: AC

• Installation Side Connection Model: 3-phase

• Max. Power per Charging Point: 22 kW

• Max. Output Current DC: 32 A

• Frequency: 50/60 Hz

• Number of Charging Units: 2

• Number of Socket Outlets Type 2 (IEC 62196): 2

• OCPP Version: 1.6 (compliant with any back-office system)

• Connectivity: Plug & Charge / RFID / Mobile App

• Integrated RFID Reader: Yes

• PME Fault Detection: TruePEN (no earth rod required)

• Cable Lock Feature: Yes

• Housing Material: Aluminium

• Degree of Protection: IK10 Impact Resistance

• Width: 375 mm

• Depth: 275 mm

• Height: 1440 mm

• Floor Mounting: Yes

• Wall Mounting: No
