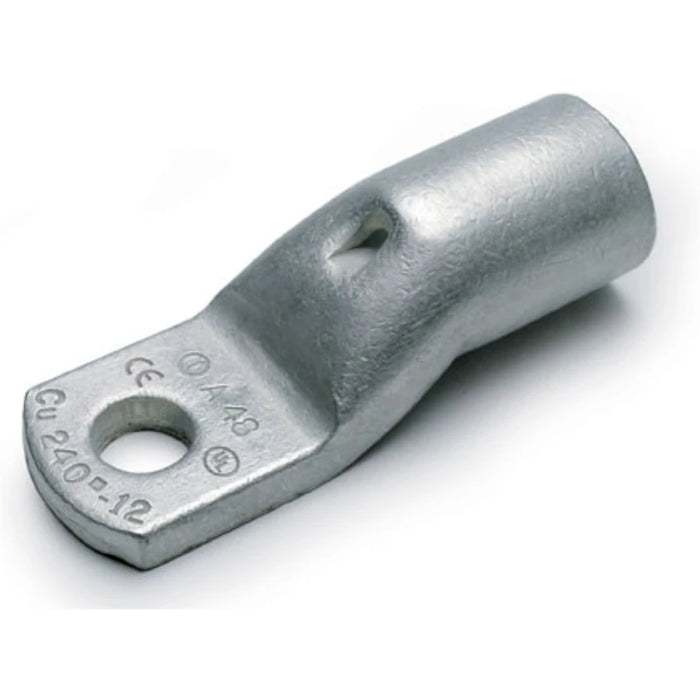

150mm² Copper lug contained M10 [Pack of 25]

The 150mm² copper tube crimping lug with contained palm is designed for secure and reliable electrical connections in demanding applications. Manufactured from electrolytic copper with a purity greater than 99.9%, this lug is annealed for optimal ductility and electroplated with tin to prevent oxidation. With a maximum voltage rating of 11kV and an operating temperature range of -50°C to +150°C, this lug is ideal for high-performance settings. The contained palm and 180° connecting angle (horizontal) ensure a firm, secure connection, while the slender flange model adds flexibility.

Technical Specifications

Download Product Technical Data Sheet

• Copper tube crimping lug
• Surface protection: Tinned
• Flange shape: Ring shape
• Connecting angle: 180° (horizontal)
• Material: Copper
• AWG size: 250 kcmil
• Bolt dimension (metric): 10
• Nominal cross section: 150 mm²
• Number of fixing holes: 1
• With sight-hole: No
• Slender flange model: Yes
• Insulated: No
