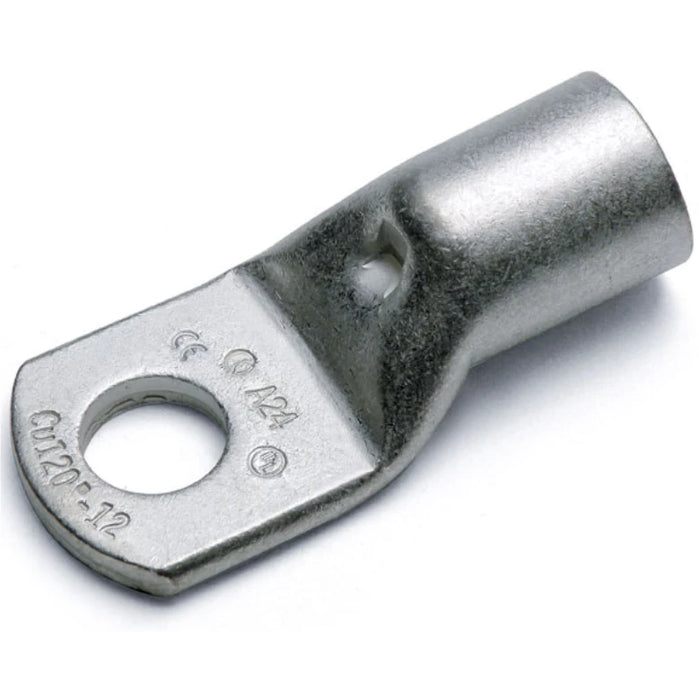

95mm² Copper lug M6 stud [Pack of 25]

The 95mm² copper tube crimping lug is designed for heavy-duty electrical connections. Manufactured from electrolytic copper with a purity greater than 99.9%, this lug is annealed for optimal ductility and electroplated with tin to prevent oxidation. It features a 180° connecting angle (horizontal) and a ring-shaped flange, ensuring secure and reliable connections. With a maximum voltage rating of 11kV and an operating temperature range from -50°C to +150°C, this lug is ideal for demanding applications. The lug also includes a sight-hole for added functionality, offering an efficient way to secure the conductor.

Technical Specifications

Download Product Technical Data Sheet

• Copper tube crimping lug
• Connecting angle: 180° (horizontal)
• Flange shape: Ring shape
• Surface protection: Tinned
• Material: Copper
• Number of fixing holes: 1
• Bolt dimension (metric): 6
• AWG size: 000
• Nominal cross section: 95 mm²
• Slender flange model: No
• With sight-hole: Yes
• Insulated: No
