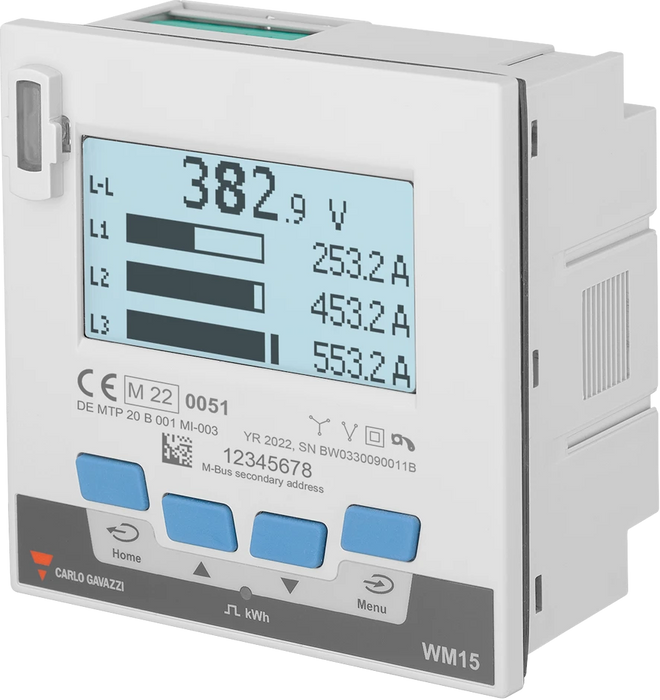

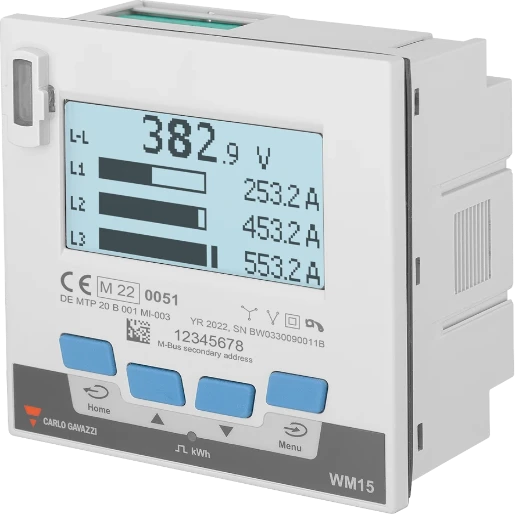

Three-Phase Mid Power Analyzer 230 V L-N 400 V L-L 5 (6) A M-Bus Pulse Output

The WM15 Three-Phase MID Power Analyzer is a versatile and accurate energy meter designed for single-, two-, and three-phase electrical systems. With a nominal voltage of 230 V L-N and 400 V L-L and a current rating of 5(6) A, this analyzer ensures precise measurement of effective power, making it ideal for commercial and industrial energy monitoring applications.

Equipped with a static pulse output and an M-Bus communication interface, the WM15 provides seamless integration with building automation and energy management systems, enabling efficient data collection and analysis. The self-powered version supports installation in systems up to 415 V L-L (400 V for MID models), while the auxiliary-powered version can be used in higher voltage systems up to 600 V L-L.

With features like enhanced readability, easy navigation, and quick setup, the WM15 is designed to simplify installation and operation while complying with MID fiscal metrology standards for billing accuracy.

Technical Specifications

• Download Product Technical Data Sheet

• System Compatibility: Single-, two-, and three-phase

• Nominal Voltage (L-N): 230 V

• Nominal Voltage (L-L): 400 V

• Current Rating: 5 (6) A

• Communication Interface: M-Bus

• Outputs: Static pulse output

• Power Supply: Self-powered (up to 415 V L-L) or auxiliary power supply (up to 600 V L-L)

• Energy Type: Effective power

• Display: Enhanced readability for easy monitoring

• Installation: Quick and intuitive setup

• Compliance: MID approved for fiscal metering

• Applications: Energy monitoring, consumption billing, load management, and system diagnostics

Optimize your energy management with the WM15 Three-Phase MID Power Analyzer, combining precision, flexibility, and easy integration for all your power monitoring needs.
