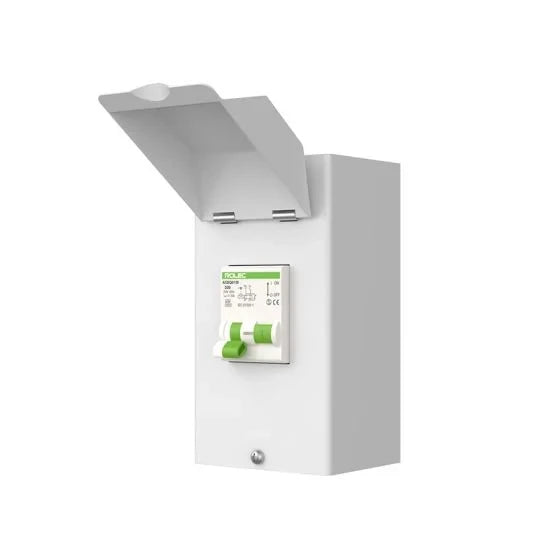

40A Single Phase EV Consumer Unit with Type B RCD / MCB

Ensure maximum safety and full compliance when installing your EV charging point with the 40A Single Phase EV Consumer Unit with Type B RCD / MCB. Specifically designed to support 32A single-phase EV chargers with PME fault detection, this robust and compact unit from Rolec’s platinum range is perfect for both domestic and commercial EV charger installations. Built to BS7671 18th Edition standards, it offers comprehensive protection against overload, short circuits, and both AC and DC fault currents, streamlining the installation process for electrical contractors.

Technical Specification

• Download Product Technical Data Sheet

• Application: Suitable for 32A Single Phase EV charger installations

• MCB Rating: 40A 1P 6KA

• RCD Type: 63A 30mA 2P Type B RCD – AC overload & AC/DC fault current protection

• Design: 4-Mod IP40-rated powder-coated steel enclosure

• Compliance: Fully compliant with BS7671 18th Edition Wiring Regulations

• Protection Features: Offers short circuit, overcurrent, and earth leakage protection

• Construction: IK10 impact-resistant metal housing in grey finish

• Certifications: CE / UKCA certified

• Switchgear: Premium-grade platinum range components

• Dimensions:

  • Width: 126 mm

  • Depth: 110 mm

  • Height: 240 mm

• Main Switch Current Rating: 40 A

• Ingress Protection: IP40

• Housing Material: Durable steel

• Phase Configuration: Single Phase

This compact and durable consumer unit ensures optimal performance and protection, making it a trusted choice for any EV charger installation requiring reliable PME fault detection and advanced RCD technology.
