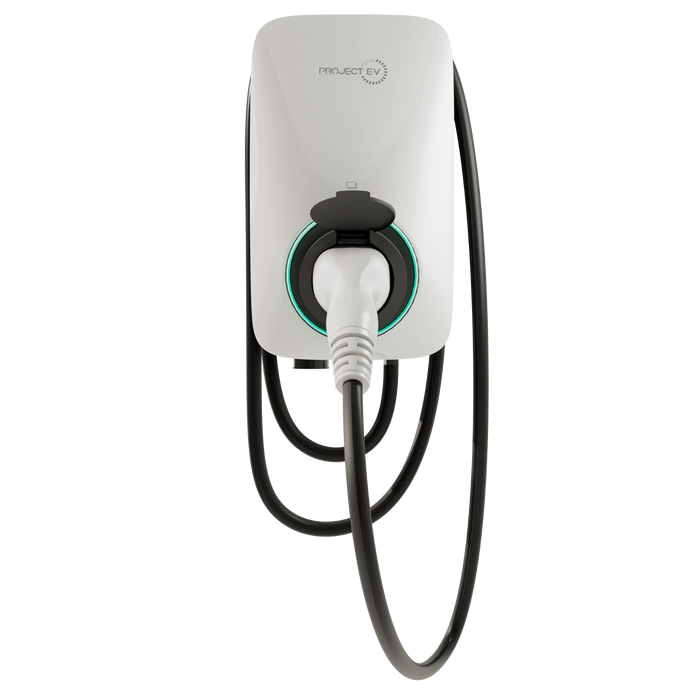

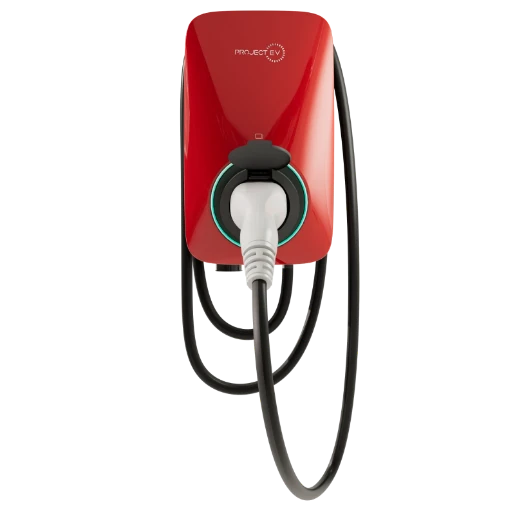

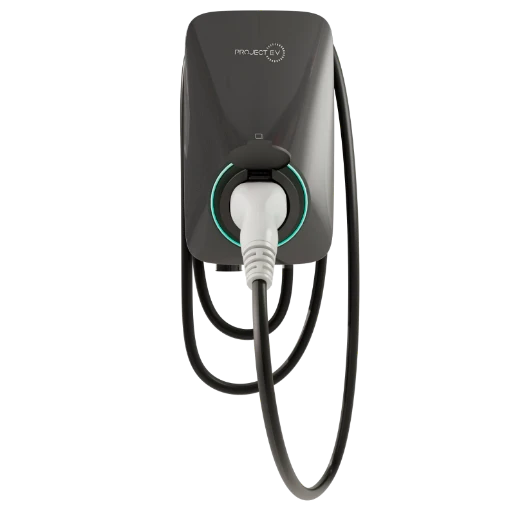

APEX 7kW EV Charger WiFi RFID Bluetooth Tethered 4G

The Project EV APEX 7kW Tethered Charger is a high-performance EV charging solution built for residential and commercial applications. With WiFi, 4G GSM, RFID, and Bluetooth capabilities, it offers full smart app control, secure access, and seamless charging through a 5m tethered Type 2 cable. Its robust design, weather-resistant rating (IP65), and user-friendly operation make it ideal for any EV setup.

Technical Specification

• Download Product Technical Data Sheet

• Max Power Output: 7.3 kW

• Output Current (Max DC): 32 A

• Connectivity: WiFi, Bluetooth, 4G GSM

• Access Control Options: Plug & Play / RFID Card / App Controlled

• Charging Cable: 5m Tethered Type 2

• Compatible Protocol: OCPP 1.6 JSON

• Mounting Options: Wall or Post Mountable

• Power Supply: Single Phase

• Safety Features:

  • Integral Type A RCBO

  • AC 30mA / DC 6mA Leakage Protection

• Ingress Protection: IP65 (Weather Resistant)

• Impact Resistance: IK08 (High Durability)

• Dimensions:

  • Width: 190 mm

  • Height: 320 mm

  • Depth: 144 mm

• Frequency: 50/60 Hz

• Smart Functionality: App-Controlled, Networkable via Wi-Fi and 4G

Stay Connected. Charge Smarter.
The APEX 7kW EV Charger delivers advanced charging technology with intelligent controls and rugged durability—making it a reliable choice for every EV owner.
