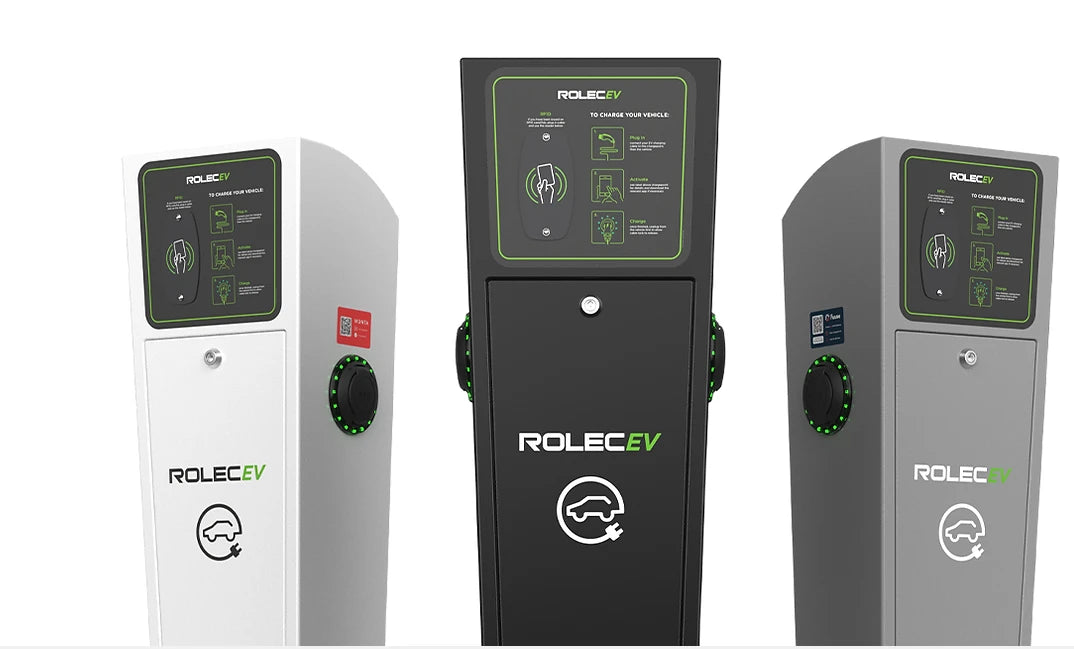

Autocharge EV Charging Pedestal Single Phase Black 2X Type 2 (IEC 62196) Charging Sockets Up To 7.4kW (32A) Per Socket 1X 63A 230V AC

The AutoCharge EV Charging Pedestal is a heavy-duty, vandal-resistant charging solution designed for high-traffic areas such as public car parks, commercial premises, and workplaces. Equipped with dual Type 2 (IEC 62196) sockets, this single-phase unit delivers up to 7.4kW per socket, allowing two electric vehicles to charge simultaneously with speed and efficiency.

Engineered for durability, this floor-mounted steel pedestal is both IP54 weatherproof and IK10 impact-resistant, ensuring long-lasting performance in outdoor or exposed environments. OCPP 1.6 compliant, it integrates seamlessly with any back-office system, offering plug & charge, RFID, or mobile app control for flexible, future-proof EV charging management.

Technical Specification

• Download Product Technical Data Sheet

• Input Voltage: 230V AC, Single Phase

• Max Charging Power: 7.4kW per socket (2 x 32A outputs)

• Vehicle Connectors: 2x Type 2 (IEC 62196) charging sockets

• Output Current: 32A per socket

• Housing Material: Robust steel construction

• IP Rating: IP54 (weather resistant)

• IK Rating: IK10 (vandal-resistant)

• OCPP Version: 1.6 (open protocol)

• Connectivity Options: Mobile App, RFID Card/Fob

• Smart Features:

  • Dynamic Load Balancing

  • Static Load Management

  • TruePEN PME Fault Detection (no earth rod required)

• Mounting: Floor mounted (not suitable for wall mounting)

• Dimensions (W x H x D): 332mm x 1275mm x 270mm

• Frequency: 50/60 Hz

Key Benefits

• Ideal for commercial, fleet, and public charging scenarios

• Supports multiple payment and access options

• Designed for high-usage and exposed environments

• Future-ready with OCPP 1.6 compliance

• Dual charging capability – charge 2 vehicles at once

Power up your EV infrastructure with the AutoCharge EV Pedestal—the reliable, secure, and smart choice for commercial and public EV charging applications.
