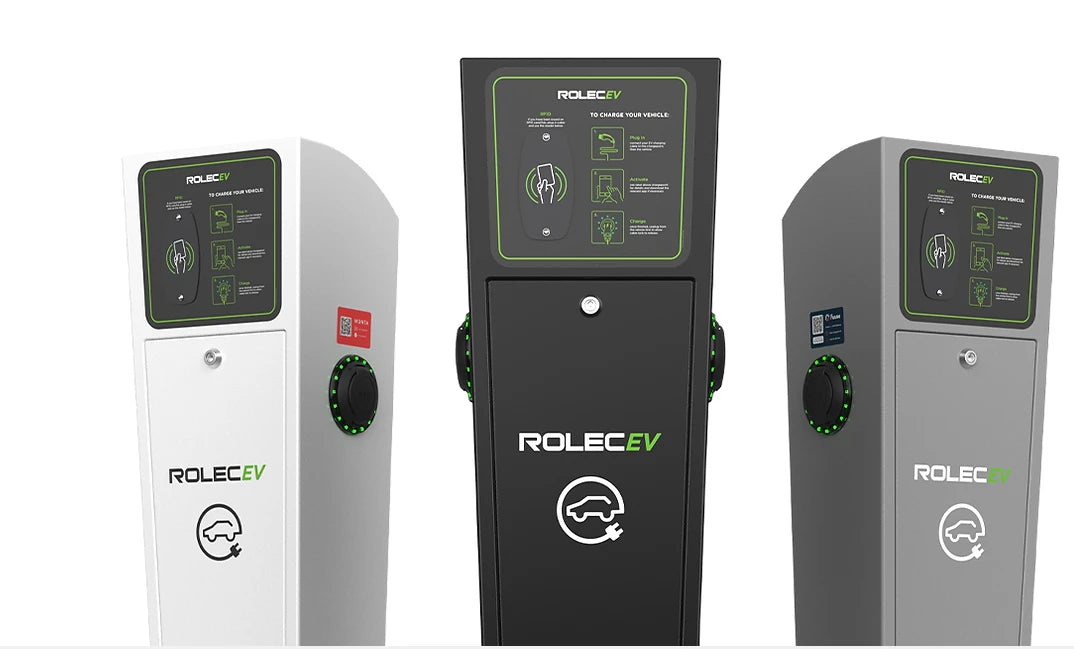

Autocharge EV Charging Pedestal Three Phase Black 2X Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1X 63A 400V Ac

The AutoCharge EV Charging Pedestal is a robust, vandal-resistant charging solution designed for demanding environments such as workplaces and public car parks. Built with heavy-duty steel housing and engineered for outdoor exposure, this three-phase pedestal delivers reliable, high-speed charging with two Type 2 sockets, each supporting up to 22kW (32A) power output.

Equipped with advanced features like TruePEN PME fault detection (eliminating the need for an earth rod), dynamic load balancing, and full OCPP 1.6 compliance, the AutoCharge pedestal integrates seamlessly with any back-office management system. Drivers can enjoy flexible plug & charge, mobile app, or RFID card/fob controlled charging options for ultimate convenience.

Technical Specification

• Download Product Technical Data Sheet

• Voltage Type: AC, 3-phase, 400V

• Max Power Output: 22 kW per charging point

• Max Output Current (DC): 32 A

• Number of Charging Units: 2

• Number of Socket Outlets: 2x Type 2 (IEC 62196)

• Housing Material: Heavy-duty Steel

• Dimensions:

  • Height: 1275 mm

  • Width: 332 mm

  • Depth: 270 mm

• Mounting: Floor mounted (not suitable for wall mounting)

• Frequency: 50/60 Hz

• Connectivity & Compliance:

  • OCPP 1.6 compliant – supports integration with any back-office system

  • TruePEN PME fault detection (no earth rod required)

  • Dynamic load balancing and static load management

  • Plug & charge, mobile app, or RFID card/fob controlled

Heavy-Duty, Smart & Future-Proof
The AutoCharge EV Charging Pedestal offers a secure, intelligent, and future-ready charging solution, perfect for commercial and public EV charging installations.
