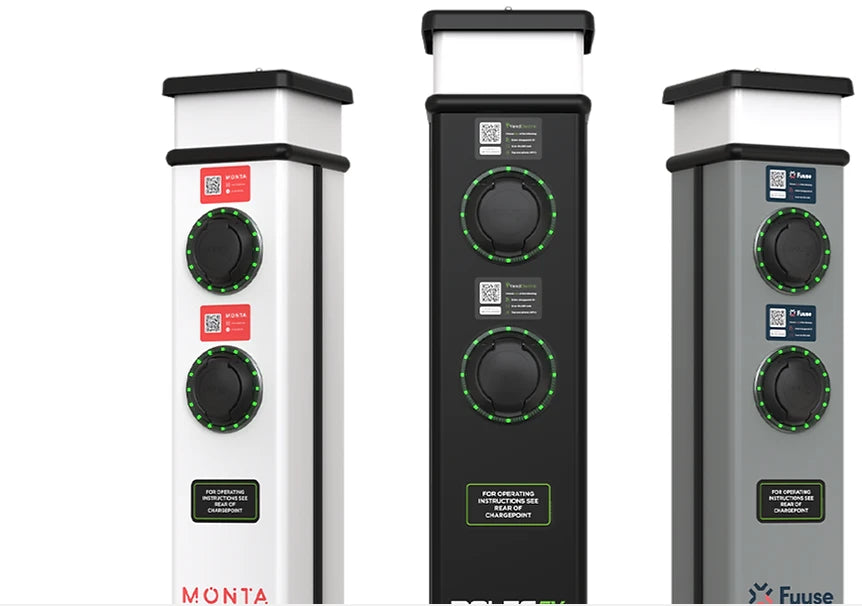

Basiccharge EV Charging Pedestal Three Phase Black 1X Type 2 (IEC 62196) Charging Socket Up To 22kW (32A) 1X 32A 400V Ac

The Basiccharge EV Charging Pedestal is a simple, reliable, and affordable charging solution designed for both commercial and public use. Featuring a robust steel housing with IK10 impact resistance and an IP54 weatherproof rating, this pedestal delivers up to 22kW (32A) of fast, efficient charging through its single Type 2 socket.

Ideal for workplaces, public car parks, or any exposed location, the Basiccharge pedestal includes integrated LED amenity lighting with photocell control, enhancing visibility and safety around charging bays. This future-proof unit is OCPP 1.6 compliant and supports flexible plug & charge, mobile app, or RFID card/fob controlled charging via any OCPP back-office management system.

Technical Specification

• Download Product Technical Data Sheet

• Housing Material: Durable Steel

• Voltage Type: AC, 3-phase, 400V

• Max Power Output: 22 kW

• Max Output Current (DC): 32 A

• Number of Socket Outlets: 1x Type 2 (IEC 62196)

• Dimensions (HxWxD): 1130 mm x 205 mm x 205 mm

• Degree of Protection: IP54 (weatherproof)

• Impact Resistance: IK10 (vandal resistant)

• Frequency: 50/60 Hz

• Connectivity:

  • Networkable via Wi-Fi, LAN, and 4G

• Features:

  • Plug & charge, mobile app, or RFID controlled

  • Over-the-air firmware/software updates

  • Built-in AC overload and fault current protection (RCBO)

  • LED amenity lighting with photocell control

• Mounting: Floor mounting only

Affordable, Durable & Smart
The Basiccharge EV Charging Pedestal offers a straightforward and cost-effective way to provide smart, secure EV charging with advanced connectivity and safety features — perfect for future-ready commercial and public charging infrastructure.
