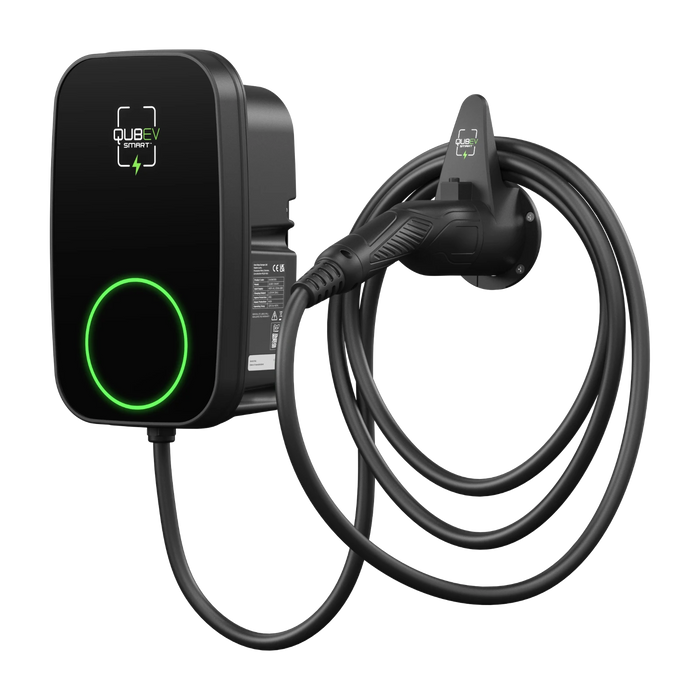

Qubev Smart 32A 22kW Type 2 5m Tethered EV Charger

The QUBEV Smart 22kW Type 2 Tethered EV Charger is a powerful and feature-rich charging solution built for modern electric vehicle owners. With a sleek 5-meter tethered Type 2 cable and advanced connectivity options including Wi-Fi and Ethernet, this charger is OCPP 1.6J compliant and ideal for both residential and light commercial use.

Designed with flexibility in mind, the QUBEV Smart offers adjustable power settings (10A to 32A), solar compatibility (on single-phase models), and PEN fault protection for added safety. Installers benefit from Bluetooth configuration, while users enjoy seamless control via the free QUBEV Smart Wi-Fi app. With dynamic load balancing and a durable, wall-mountable enclosure, this charger delivers high performance with complete peace of mind.

Technical Specification

• Download Product Technical Data Sheet

• Charging Cable: 5m Tethered Type 2

• Max Power Output: Up to 22 kW

• Adjustable Current Settings: 10A, 13A, 16A, 32A

• Connectivity: Wi-Fi & Ethernet (LAN)

• Bluetooth: For Installer Configuration

• OCPP Compliance: OCPP 1.6J

• Solar Compatibility: Yes (Single Phase Models Only)

• Smart Features: Free QUBEV Smart App

• Safety Features:

  • PEN Fault Protection

  • Residual Current Protection (AC 30mA Type A, DC 6mA)

• Load Management: Dynamic Load Balancing (CT clamps & cables included)

• Power Supply: 3-Phase AC

• Impact Resistance: IK08

• Ingress Protection: IP54

• Mounting Type: Wall or Post Mountable

• Dimensions:

  • Width: 200 mm

  • Height: 330 mm

  • Depth: 107 mm

• Frequency: 50/60 Hz

• Number of Charging Units: 1

• Number of Vehicle Connectors: 1x Type 2

• Number of Socket Outlets: 1x Type 2

• Certifications: CE & UKCA Certified

• 4G Connectivity: Not Supported

Smart, Safe, and Future-Ready
The QUBEV Smart 22kW Tethered EV Charger is the ideal choice for EV owners looking for intelligent charging with advanced safety, solar support, and full OCPP integration.
