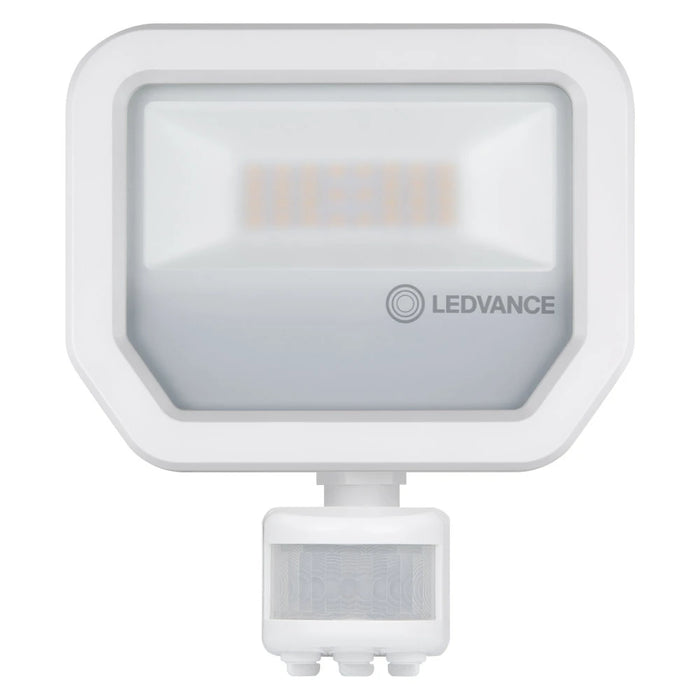

FLOODLIGHT SENSOR 20 W 4000 K SYM 100 S WT

Upgrade your outdoor lighting with the FLOODLIGHT SENSOR 20W 4000K SYM 100 S WT, a high-performance LED floodlight designed for efficiency, safety, and smart control. Featuring a flexible motion and daylight sensor with 350° pan and 180° tilt, this floodlight offers precise, programmable illumination for a wide range of applications—from building facades and construction sites to gardens and balconies.

With a symmetric 100° x 100° beam angle, frosted tempered glass diffuser, and surge protection up to 4 kV, this robust fixture is built to perform in demanding environments. Thanks to its integrated wide-voltage driver (100–277 V AC) and 5-year guarantee, it offers long-term reliability and energy savings of up to 90% compared to traditional halogen floodlights.

Technical Specification

• Download Product Technical Data Sheet

• Model: FLOODLIGHT SENSOR 20W 4000K SYM 100 S WT

• Power Consumption: 20 W

• Voltage Range: 100 – 277 V AC

• Power Factor: 0.9

• Rated Lifetime (L70/B50 @ 25°C): 70,000 hours

• Sensor Type: Motion & daylight sensor, 350° pan, 180° tilt

• Beam Angle: 100° x 100°, symmetric

• Surge Protection: 4 kV (L/N-PE), 2 kV (L-N)

• Light Output: White light, 4000 K

• CRI (Color Rendering Index): 80–89

• Glass Diffuser: Frosted, tempered for uniform illumination

• IK Rating: IK07 impact resistance

• Mounting Options:

  • Wall mounting: Yes

  • Surface mounting: Yes

  • Ceiling, recessed, clamp, or suspended mounting: No

• Dimensions (L x W x H): 176 mm x 156 mm x 55 mm

• Housing Material: Aluminium with powder-coated finish (white)

• Cabling: Pre-installed 1 m H05RN-F cable, 3 x 1.0 mm² wires

• Connection Type: Screwless terminal

• Control Gear: Integrated electronic ballast

• Smart Functions

  • Motion sensor: Yes

  • Daylight sensor: Yes

  • Always-on override via mains switching pattern

  • IFTTT support: Yes

  • Compatible with voice assistants: No

• Environmental Ratings

  • Operating Temperature: -30°C to +50°C

  • Protection Class: I (IEC 61140)

  • IP Rating: IP65 (suitable for outdoor use)

• Certifications: EN 62471 Photobiological Safety – RG1

• Energy Efficiency Class: E (per EU 2019/2015)

This 20W LED sensor floodlight delivers powerful, customizable illumination in a compact, energy-saving design, ideal for both residential and commercial outdoor environments.
