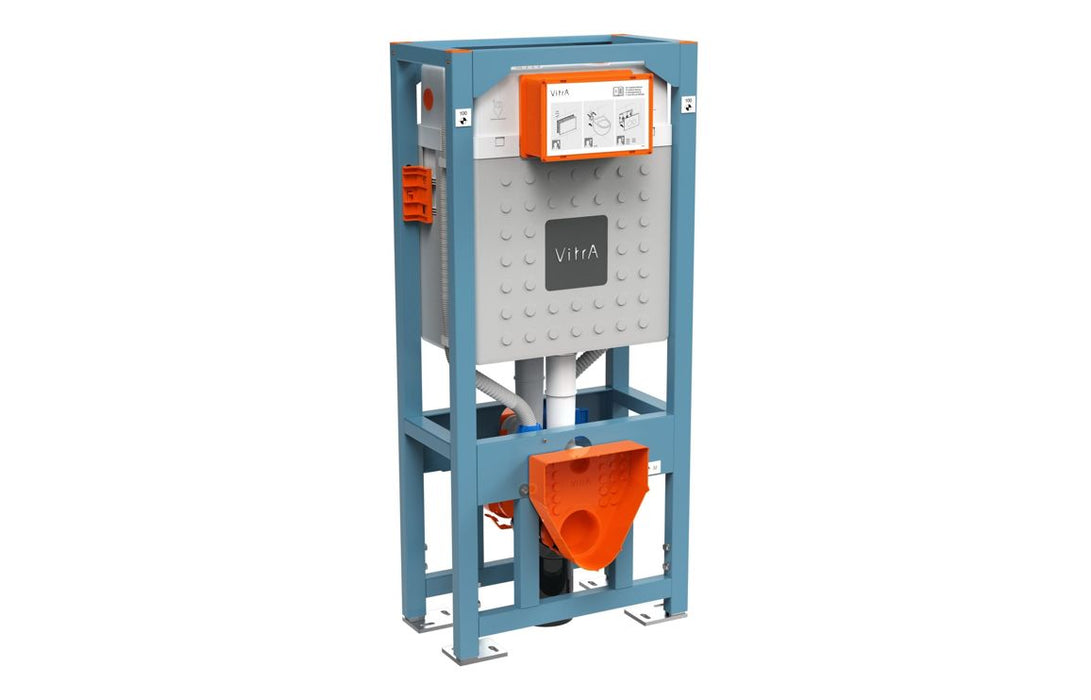

VitrA V-Fix Prime WH WC Frame & 12cm (Double Fix & Electric Connection)

The VitrA V-Fix Prime 12cm Wall-Hung WC Frame is a versatile and robust solution for modern bathrooms, designed to securely support wall-hung toilets while accommodating double-fix installations and electric connections. This high-quality frame provides maximum stability and is suitable for both residential and commercial projects.

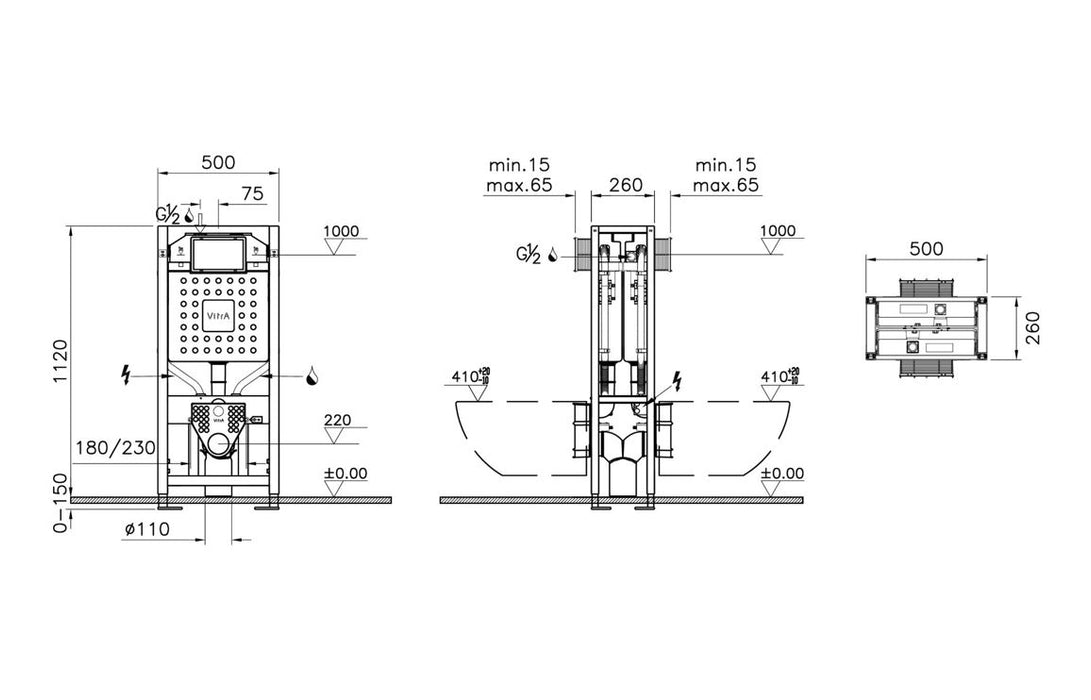

• Dimensions: H 1120mm x W 500mm x D 260mm
• V-Fix Frames are an essential addition to any modern bathroom, providing strong and reliable support for wall-hung toilets without the need for costly structural work. Designed for maximum flexibility, VitrA’s range of frames adapts seamlessly to a variety of installation needs. The reduced height option is ideal for compact spaces, sloped ceilings, or areas beneath windows. Suitable for solid, stud, and double-stud wall constructions, these frames are available with multiple flushing volume options to suit your project requirements.
• Weight-bearing up to 400kg.
• Fuss-free maintenance, keeping your walls intact. Simply remove the flush plate for access.
• Proven reliable after 200,000 flushes. Giving you around 90 years of flushing guaranteed.
• Comes with a 10 Years Guarantee

Technical Specification

• Height (mm): 1120
• Width (mm): 500
• Depth (mm): 260
• Barcode (EAN): 5054913592508
• Manufacturers Guarantee: 10 Years
• Brand: VitrA
• Range: V-Fix Prime
• Flush Volume (L): 3/6L
• Material: Metal
• Product Type: Concealed Cistern & Frame
• Supplier Code: 762-5855-01
• Type: Wall Hung WC Frame

Downloads

Exploded Diagram click here
