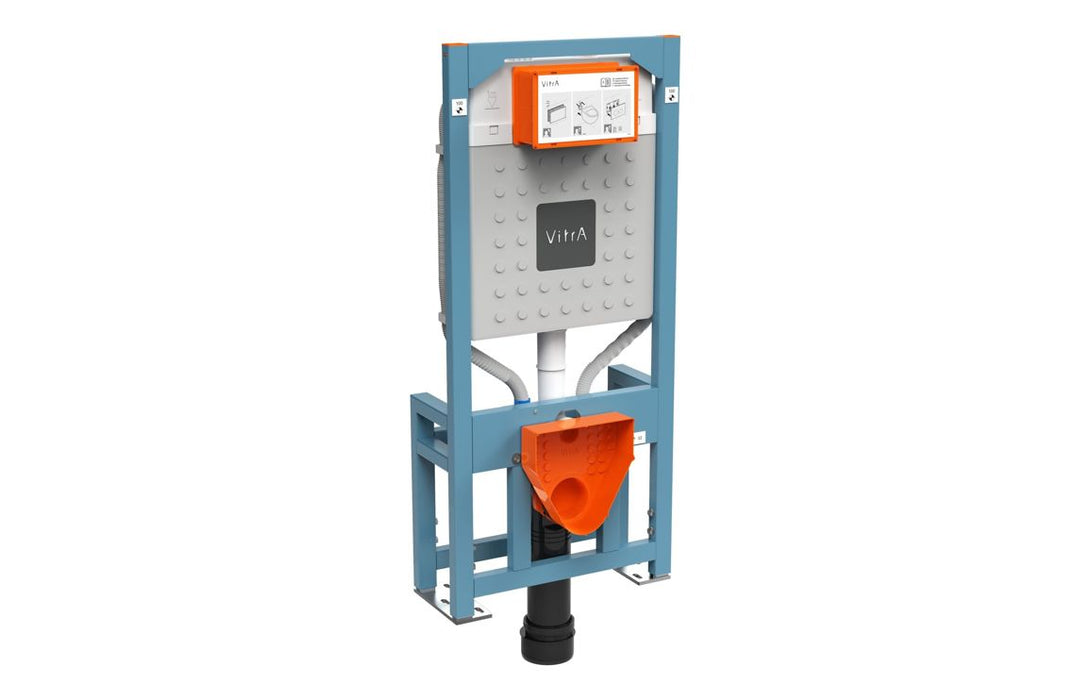

VitrA V-Fix Prime WH WC Frame & 12cm (Floor Fix Electric & Water Connection)

The VitrA V-Fix Prime Frame provides a strong and reliable solution for supporting wall-hung toilets without the need for major structural work. Designed for easy installation, this floor-fix frame includes electric and water connections for added convenience. With a 12cm cistern offering efficient flushing options, it’s suitable for solid or stud wall installations. Perfect for modern bathrooms, it combines durability, flexibility, and easy access for maintenance through the flush plate.

• Dimensions: H 1120mm x W 500mm x D 200mm
• V-Fix Frames are essential for modern bathrooms, providing strong and secure support for wall-hung toilets without the need for costly structural modifications. Designed for versatility, VitrA’s range of frames adapts to any project requirement. The reduced-height model is ideal for compact spaces, sloped ceilings, or areas with low windows. Suitable for installation within solid, stud, or double-stud walls, these frames offer flexibility and come with a choice of flushing volumes to suit your needs.
• Weight-bearing up to 400kg.
• Fuss-free maintenance, keeping your walls intact. Simply remove the flush plate for access.
• Proven reliable after 200,000 flushes. Giving you around 90 years of flushing guaranteed.
• Comes with a 10 Years Guarantee

Technical Specification

• Height (mm): 1120
• Width (mm): 500
• Depth (mm): 200
• Barcode (EAN): 5054913592492
• Manufacturers Guarantee: 10 Years
• Brand: VitrA
• Range: V-Fix Prime
• Flush Volume (L): 3/6L
• Material: Metal
• Product Type: Concealed Cistern & Frame
• Supplier Code: 762-4805-01
• Type: Wall Hung WC Frame

Downloads

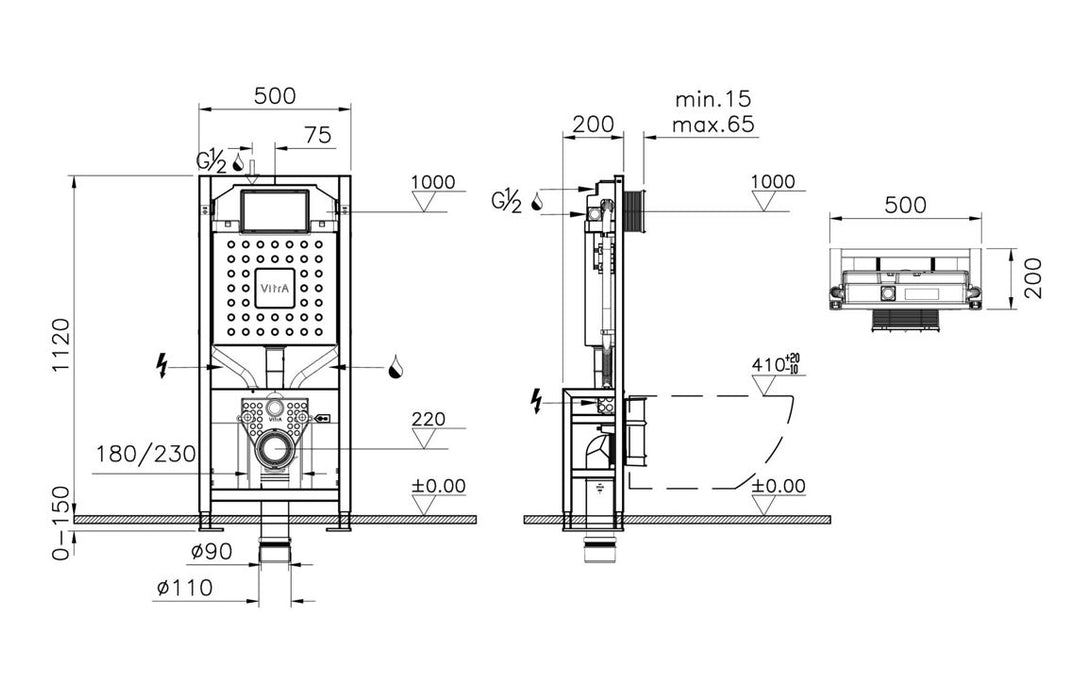

Exploded Diagram click here
