1500 Litres Super Complete Rainwater Harvesting System

The 1500 Litres Super Complete Rainwater Harvesting System is a fully integrated, UK-designed solution that allows homes and gardens to make the most of natural rainwater. Harvesting rainwater reduces household water bills, supports sustainable living and offers a chemical-free alternative to tap water for gardening, cleaning and even toilet flushing—which alone accounts for around 35% of typical household water usage. By diverting and storing rainwater, this system also helps reduce surface flooding during heavy rainfall. Manufactured from high-grade, rotationally moulded MDPE, the underground tank is exceptionally strong, durable and built to last. It features integrated lifting eyes for easier installation and is compatible with standard UK 4" (110mm) pipe fittings. Supplied as a complete package with pump, filter, fittings and pipework, this system provides a reliable, low-maintenance rainwater supply for a wide range of domestic applications.

Technical Specification

• Download Product Technical Data Sheet

• Complete 1500L rainwater harvesting system for home and garden use
• UK-designed and manufactured using tank-grade MDPE
• Rotationally moulded underground tank for maximum strength and reliability
• Natural rainwater reduces water bills and is ideal for plants and outdoor use
• Helps reduce reliance on mains water and minimise flooding
• Integrated lifting lugs for easier installation
• Compatible with UK standard 4" (110mm) pipe fittings
• Connect multiple tanks using 4" drainage pipe
• Includes walk-on removable lid and extended neck
• 10-year warranty against manufacturing defects

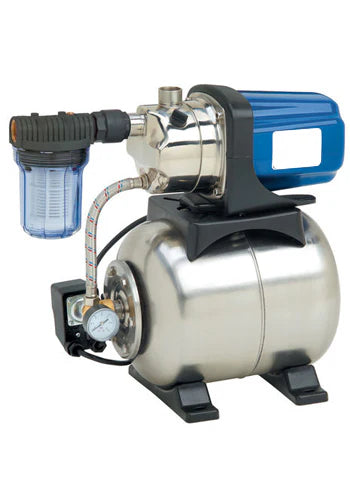

• Included Pump (BPT1200SS)
• Maximum output: 61 L/min
• Maximum head: 46m
• 1200W, 230V motor
• 19L stainless steel pressure tank
• Operating pressure: 3 bar (43 psi)
• Self-priming pump with auto pressure switch
• Water-resistant on/off switch
• 1" outlet
• Pump Upgrade (CBM250SS)
• Maximum output: 100 L/min
• Maximum head: 60m
• Long-life double-insulated impeller
• 24L stainless steel tank
• Auto start/stop pressure control
• Operating pressure: 3.5–5.2 bar (51–75 psi)
• 1250W, 230V motor

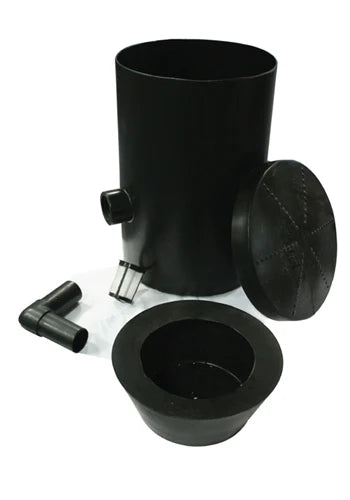

• Underground Filter
• Made from high-quality MDPE
• Installs along inlet pipe between downpipe and tank
• Accessible for cleaning
• Walk-on-rated lid (foot traffic only)
• Back-Up in a Box (Optional)
• Automatically tops up water when levels run low
• Rainwater Harvesting Pipe
• 25m of 25mm pipe with identifiable green stripe
• Compliant with Water Regulations for rainwater systems
• Underground Water Tank Dimensions
• Height: 950mm
• Length: 2400mm
• Width: 1200mm
• Outlets: Up to 4"
• Access: 450mm
• Weight: 100kg
• Capacity: 1500 litres
• Material: MDPE (Medium Density Polyethylene)
• This Complete System Includes:
• Ecosure underground rainwater tank
• 25m of 25mm rainwater harvesting pipe
• Stainless steel water pump
• Walk-on removable lid
• Extended neck
• In-line filter box
• Brass foot valve
• Three 25mm pipe connectors
• 1" BSP isolator valve
