1950 Litres Super Complete Rainwater Harvesting System

The 1950 Litres Super Complete Rainwater Harvesting System is a powerful, UK-designed solution that helps households save money, lower mains water usage and support sustainable living. Collecting natural rainwater not only reduces water bills but also provides a chemical-free supply ideal for gardening, outdoor cleaning and even toilet flushing—an activity that uses around 35% of household water. Rainwater harvesting also helps reduce local flooding by diverting excess runoff into safe underground storage. Manufactured from high-grade, rotationally moulded MDPE, the 1950L underground tank offers exceptional durability, strength and long-term reliability. Featuring integrated lifting lugs for easier installation and compatibility with standard UK 4" (110mm) pipe fittings, this complete system includes everything needed for efficient rainwater capture, filtration, pumping and delivery. Designed for both home and garden use, it offers a high-performance, low-maintenance and eco-friendly water supply for years to come.

Technical Specification

• Download Product Technical Data Sheet

• Complete 1950L rainwater harvesting system for domestic and garden use
• UK-designed and manufactured using premium tank-grade MDPE
• Helps reduce water bills and provides chemical-free water for plants
• Suitable for flushing toilets, garden irrigation and outdoor cleaning
• Helps mitigate flooding by managing roof runoff
• Rotationally moulded tank ensures high strength and long-term durability
• Integrated lifting lugs for easy installation
• Compatible with standard UK 4" (110mm) pipe fittings
• Walk-on removable lid and extended neck included
• 10-year warranty against manufacturing defects

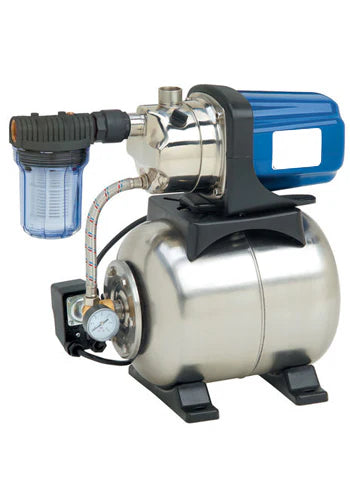

• Included Pump (BPT1200SS)
• Maximum output: 61 litres/min
• Maximum head: 46m
• 1200W, 230V motor
• 19L stainless steel pressure tank
• Operating pressure: 3 bar (43 psi)
• Self-priming pump with automatic pressure control
• Water-resistant on/off switch
• 1" outlet
• Pump Upgrade (CBM250SS)
• Maximum output: 100 litres/min
• Maximum head: 60m
• Long-life double-insulated impeller
• 24L stainless steel tank
• Automatic start/stop for consistent pressure
• Operating pressure: 3.5–5.2 bar (51–75 psi)
• 1250W, 230V motor

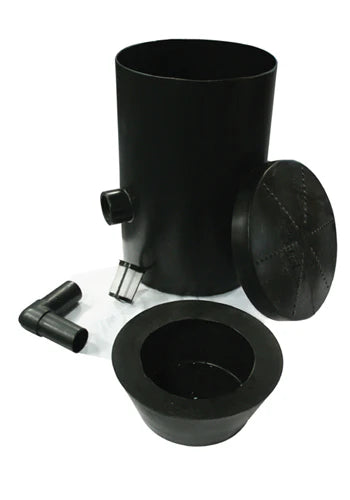

• Underground Filter
• Made from the same MDPE as the tank for durability
• Installs anywhere along the inlet pipe
• Access required for easy cleaning
• Foot-traffic-rated lid only
• Back-Up in a Box (Optional)
• Automatically tops up tank when water levels fall too low
• Rainwater Harvesting Pipe
• 25m of 25mm pipe with identifiable green stripe
• Meets Water Regulations requirements for rainwater systems
• Underground Water Tank Dimensions
• Height: 1550mm
• Diameter: 1550mm
• Outlets: Up to 4"
• Access: 16" lid
• Weight: 72kg
• Capacity: 1950 litres
• Material: MDPE (Medium Density Polyethylene)
• System Includes
• Ecosure underground rainwater tank
• 25m of 25mm rainwater harvesting pipe
• Stainless steel pump
• Walk-on removable lid
• Extended neck
• In-line filter box
• Brass foot valve
• Three 25mm pipe connectors
• 1" BSP isolator valve
