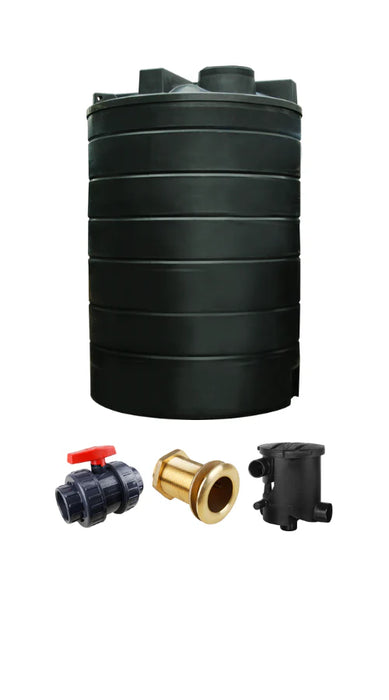

20,000 Litre Ecosure Agricultural Rainwater Harvesting System

The 20,000 Litre Ecosure Agricultural Rainwater Harvesting System is a premium large-capacity water storage and filtration solution designed for farms, smallholdings and agricultural businesses seeking to cut water costs and improve sustainability. Proudly Made in Britain, every Ecosure tank is manufactured at our factory near Cambridge using the highest-grade virgin MDPE. Each tank is rotationally moulded in a single piece for exceptional durability and comes fitted with integrated lifting eyes for easier manoeuvring onsite. With compatibility for up to 6" pipe fittings, installation is simple and adaptable to a wide range of agricultural setups.
This system includes your choice of advanced filtration: the VF1 Combi filter for roof areas up to 450m² or the Twin Filter for larger roofs up to 800m², delivering high-efficiency water cleaning with automatic debris removal. Optional mains water backup ensures the tank always maintains a minimum water level, while the HydroForce Series 3 pump provides powerful, consistent water pressure—ideal for washdown areas, equipment cleaning, jet washing, livestock care and general farm use. With a massive 20,000-litre capacity and a 10-year manufacturing guarantee, this system is engineered for long-lasting agricultural performance.

Technical Specification

• UK-manufactured agricultural rainwater harvesting system
• Made from high-quality tank-grade virgin MDPE
• Rotationally moulded, one-piece tank for superior strength
• Compatible with up to 6" pipe fittings
• Integrated lifting eyes for easy positioning and lifting
• 10-year guarantee against manufacturing defects

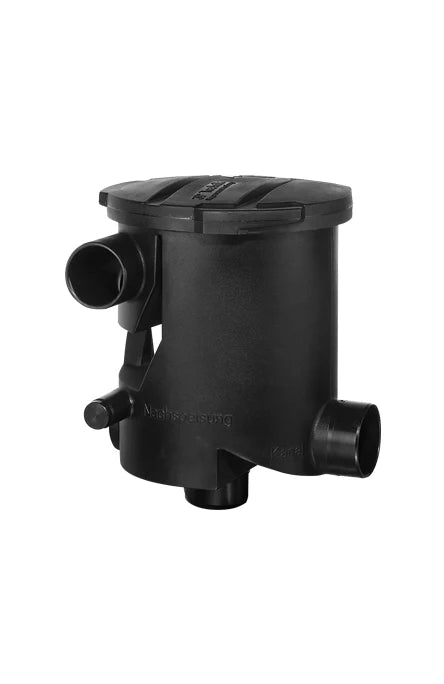

• VF1 Combi filter suitable for roof areas up to 450m²

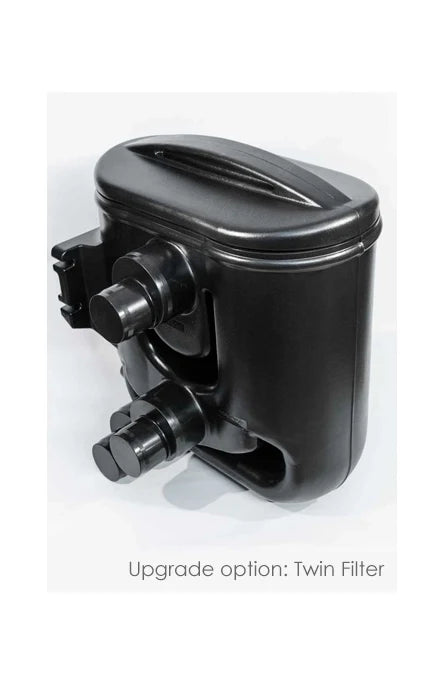

• Twin Filter suitable for roof areas up to 800m²
• Two-step filtration for high efficiency and self-cleaning debris removal
• Optional Partfill Valve enables automatic mains water top-up
• External tap system powered by HydroForce Series 3 pump
• Pump performance: max head 35m, nominal pressure 3.5 bar, max suction 3m
• Ideal for equipment washdown, jet washing, livestock water supply and irrigation
• 20,000 Litre Water Tank Dimensions
• Height: 2900mm
• Diameter: 2700mm
• Inlet: Up to 6"
• Outlet: Up to 6"
• Access: 600mm
• Weight: 300kg
• Capacity: 20,000 litres
• Material: MDPE (Medium Density Polyethylene)
