2800 Litres Super Complete Rainwater Harvesting System

The 2800 Litres Super Complete Rainwater Harvesting System is a premium, UK-designed solution that helps households significantly reduce water bills, lower mains water consumption and support sustainable living. Harvesting rainwater is not only cost-effective but also environmentally beneficial—natural rainwater is chemical-free, making it ideal for garden irrigation, outdoor cleaning and even toilet flushing, which accounts for roughly 35% of household water usage. By diverting and storing rainwater, this system also helps reduce the risk of localised flooding during heavy rain. Manufactured from high-grade, rotationally moulded MDPE, the 2800L underground tank offers exceptional strength, durability and long-term reliability. Designed for easy installation and low maintenance, it features integrated lifting lugs and compatibility with UK standard 4" (110mm) pipe fittings. With a powerful pump, filtration system, connectors and pipework included, this system provides a complete, high-performance solution for sustainable water use around the home and garden.

Technical Specification

• Download Product Technical Data Sheet

• Complete 2800L rainwater harvesting system for domestic and garden applications
• UK-made using premium tank-grade MDPE for superior strength
• Natural rainwater reduces water bills and supports sustainable outdoor use
• Suitable for toilet flushing, irrigation and general outdoor water supply
• Helps mitigate flooding by capturing and storing rainwater
• Rotationally moulded tank with integrated lifting eyes for easy handling
• Compatible with standard UK 4" (110mm) pipe fittings
• Includes walk-on removable lid and extended neck
• 10-year warranty against manufacturing defects

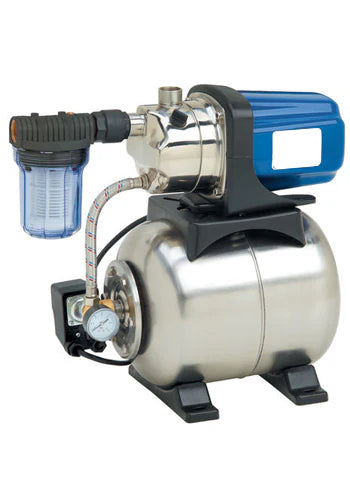

• Included Pump (BPT1200SS)
• Maximum output: 61 litres/min
• Maximum head: 46m
• 1200W, 230V motor
• 19L stainless steel tank
• Operating pressure: 3 bar (43psi)
• Self-priming pump with automatic pressure control
• Water-resistant on/off switch
• 1" outlet
• Pump Upgrade (CBM250SS)
• Maximum output: 100 litres/min
• Maximum head: 60m
• Longlife double-insulated impeller
• 24L stainless steel tank
• Auto start/stop pressure control
• Operating pressure: 3.5–5.2 bar (51–75psi)
• 1250W, 230V motor

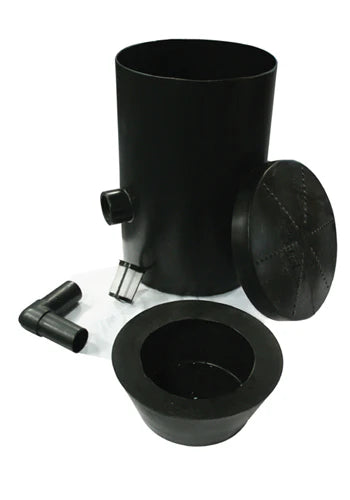

• Underground Filter
• Made from high-quality MDPE
• Installs along inlet pipe between tank and downpipe
• Accessible for easy cleaning
• Foot-traffic-only rated lid
• Back-Up in a Box (Optional)
• Automatically tops up water level when tank runs low
• Rainwater Harvesting Pipe
• 25m of 25mm pipe
• Easily identifiable by green stripe
• Required under Water Regulations for rainwater systems
• Underground Water Tank Dimensions
• Height: 2180mm
• Diameter: 1550mm
• Outlets: Up to 4"
• Access: 16" lid
• Weight: 100kg
• Capacity: 2800 litres
• Material: MDPE (Medium Density Polyethylene)
• System Includes
• Ecosure underground rainwater tank
• 25m of 25mm rainwater harvesting pipe
• Stainless steel water pump
• Walk-on removable lid
• Extended neck
• In-line filter box
• Brass foot valve
• Three 25mm pipe connectors
• 1" BSP isolator valve
