5000 Litres Super Complete Rainwater Harvesting System

The 5000 Litres Super Complete Rainwater Harvesting System is a fully integrated, UK-manufactured solution designed to help homeowners dramatically reduce mains water usage, lower water bills and embrace sustainable living. Rainwater is naturally soft and chemical-free, making it superior for garden irrigation, outdoor cleaning and even toilet flushing—which accounts for around 35% of household water consumption. Harvesting rainwater also helps reduce the risk of surface flooding during heavy downpours by diverting excess water into secure underground storage. Made from premium tank-grade MDPE, the 5000L tank is rotationally moulded for outstanding strength and durability, complete with integrated lifting lugs for easy installation and compatibility with UK-standard 4" (110mm) pipe fittings. This complete kit includes everything required for efficient water collection, filtration, pumping and delivery, making it ideal for both home and garden use.

Technical Specification

• Download Product Technical Data Sheet

• Complete 5000L rainwater harvesting system for domestic and garden applications
• Manufactured in the UK from high-grade, rotationally moulded MDPE
• Chemical-free rainwater is ideal for gardening, cleaning and toilet flushing
• Reduces household water bills and helps prevent local flooding
• Designed for easy installation with integrated lifting eyes
• Compatible with standard UK 4" (110mm) pipe fittings
• Includes walk-on removable lid and extended neck
• 10-year warranty against manufacturing defects

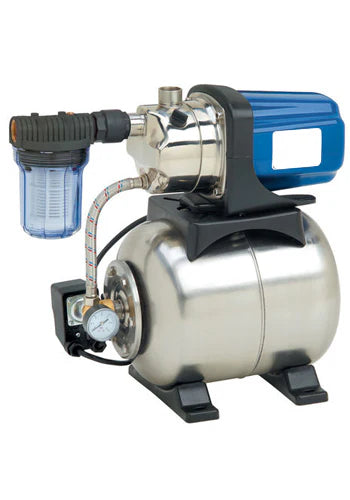

• Included Pump (BPT1200SS)
• Maximum output: 61 litres/min
• Maximum head: 46m
• 1200W, 230V motor
• 19L stainless steel tank
• Operating pressure: 3 bar (43psi)
• Self-priming with automatic pressure control
• Water-resistant on/off switch
• 1" outlet
• Pump Upgrade (CBM250SS)
• Maximum output: 100 litres/min
• Maximum head: 60m
• Double-insulated long-life impeller
• 24L stainless steel tank
• Auto start/stop ensures consistent pressure
• Operating pressure: 3.5–5.2 bar (51–75psi)
• 1250W, 230V motor

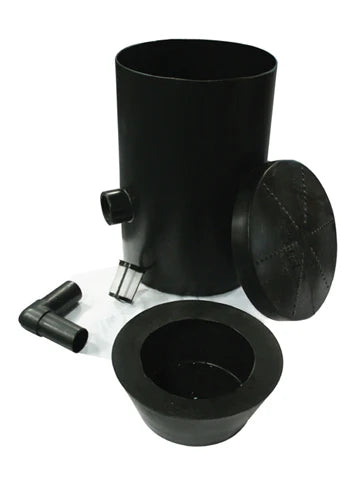

• Underground Filter
• Constructed from the same MDPE as the tank for durability
• Installs along the inlet pipe between downpipe and tank
• Accessible for easy cleaning
• Foot-traffic-rated lid
• Back-Up in a Box (Optional)
• Automatically tops up the tank when water levels are low
• Rainwater Harvesting Pipe
• 25m of 25mm pipe with green identifying stripe
• Required under Water Regulations
• Underground Water Tank Dimensions
• Height: 1250mm
• Diameter: 2150mm
• Outlets: Up to 4"
• Access: 16" lid
• Weight: 72kg
• Capacity: 5000 litres
• Material: MDPE (Medium Density Polyethylene)
• System Includes
• Ecosure underground rainwater tank
• 25m of 25mm rainwater harvesting pipe
• Stainless steel water pump
• Walk-on removable lid
• Extended neck
• In-line filter box
• Brass foot valve
• Three 25mm pipe connectors
• 1" BSP isolator valve
