Bosch HEZ9VDKR1 60cm+ Recirculation Starter Kit

The Bosch HEZ9VDKR1 60cm+ Recirculation Starter Kit is a complete and high-quality accessory kit designed for partly ducted recirculation configurations of cooktops with integrated ventilation modules. Ideal for kitchens with worktop depths of 60cm or larger, this kit provides all essential ducting components for efficient, low-noise air circulation. The integrated diffusor element ensures even air distribution in the plinth area, while the flat duct elements and connector sleeves create a fully airtight, easy-to-install system. Supporting installation heights up to 960mm, the HEZ9VDKR1 offers a professional and reliable solution for Bosch ventilation systems.

Technical Specification

• Download Product Technical Data Sheet

• Product Type: Ducting
• Type: Ducting Kit
• Brand: Bosch
• Model No.: HEZ9VDKR1

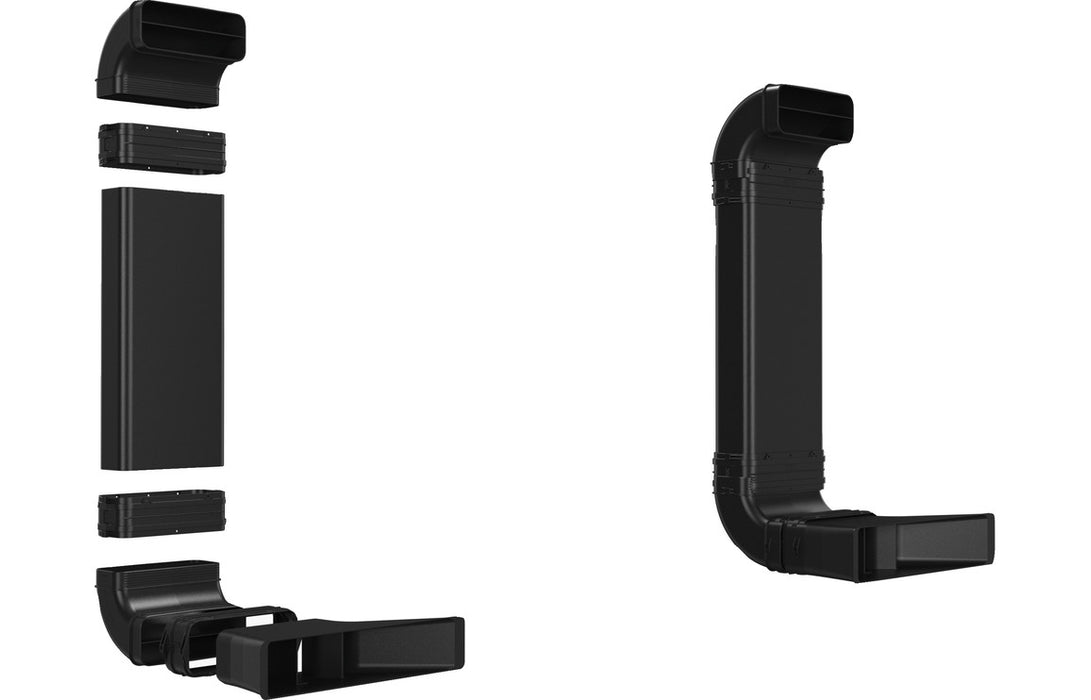

• Kit Contents:
  • 1 × Vertical 90° “S” bow flat duct element (male)
  • 1 × Vertical 90° “L” bow flat duct element (male)
  • 3 × Connector sleeves (female) for joining male ducting elements
  • 1 × Straight tube element (male, 500mm)
  • 1 × Diffusor element for spreading outflowing air in the plinth area
• Application: Suitable for partly ducted recirculation systems in kitchens with worktop depths ≥ 60cm
• Compatibility: Designed for Bosch cooktops with integrated ventilation modules

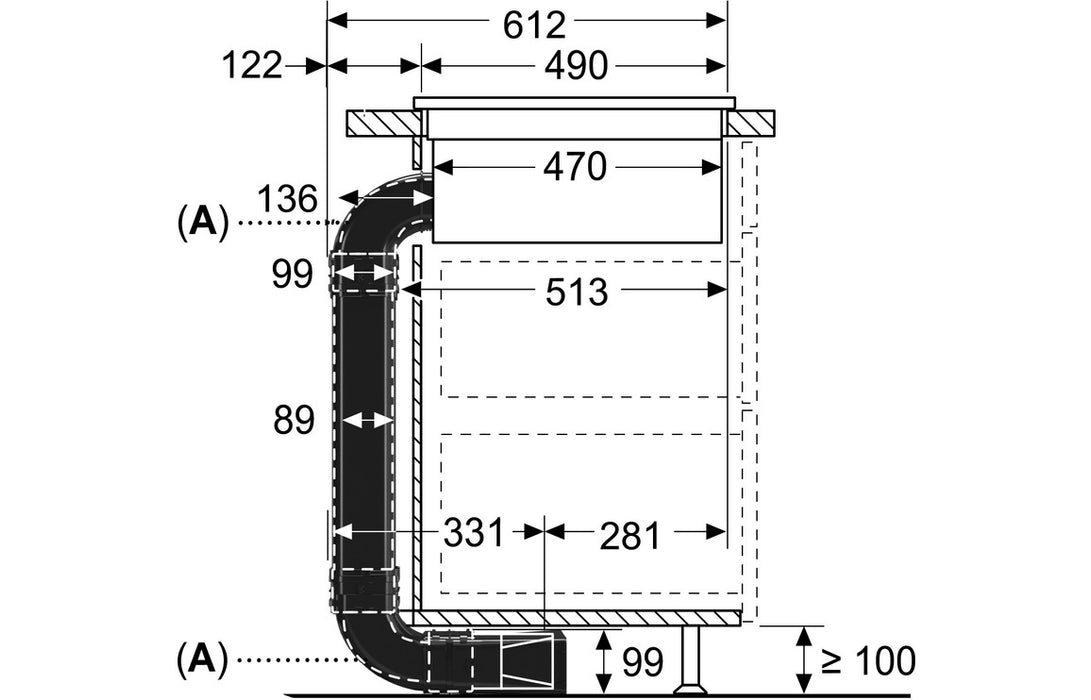

• Installation Height: Supports worktop heights up to 960mm
• Colour: Black
• Material: Plastic
• Design: Aerodynamically optimised for maximum airflow and reduced pressure loss
• Packaged Weight: 3.4kg
• Barcode (EAN): 4242005329427
• Manufacturer’s Guarantee: 1 Year
