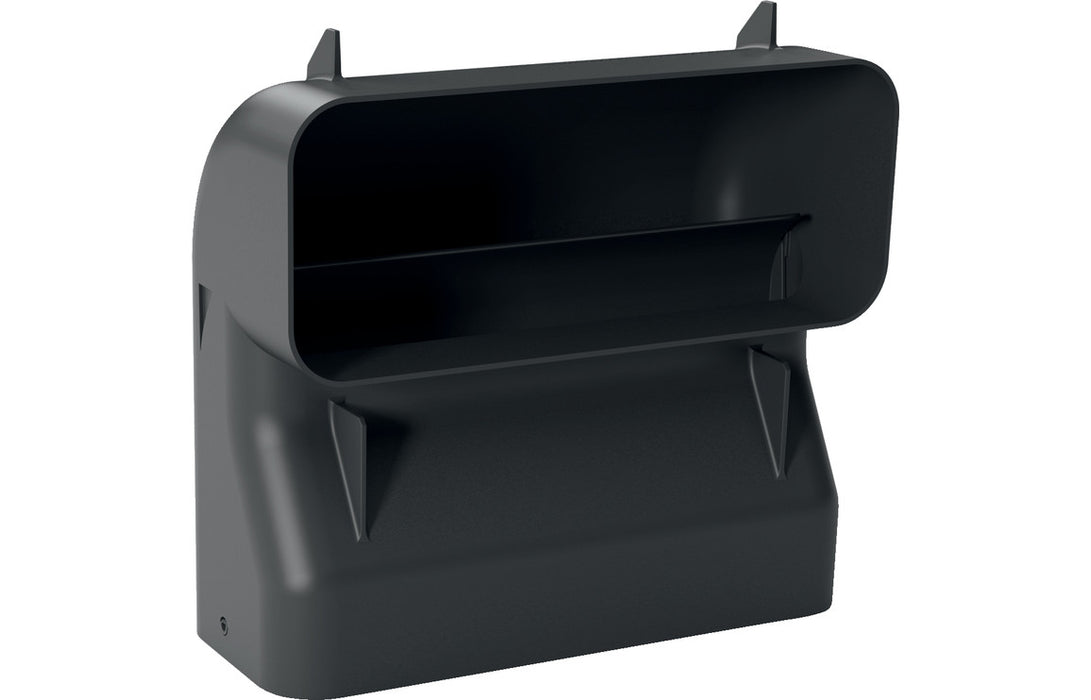

Bosch HEZ9VDSB4 Flat Vertical 90° Bend - Black (Small)
excl. VAT
💳 0% APR Finance Available*
*Please note: This product is available on special order only and is non-returnable once purchased.
The Bosch HEZ9VDSB4 Flat Vertical 90° Bend (Small) in Black is a compact, high-efficiency ducting component designed for use within kitchen furniture and cabinetry. Perfect for installations with a 60cm worktop depth, this 90° flat duct bend (male) features a very small radius for space-saving duct routing while maintaining excellent airflow. Its aerodynamically optimised design ensures minimal pressure loss and maximum air extraction performance, helping your Bosch ventilation system run quietly and efficiently. Made from durable black plastic, this ducting element is easy to cut and simple to connect via a compatible female connector sleeve, ensuring a straightforward and secure fit. Ideal for modern kitchen installations, the Bosch HEZ9VDSB4 offers precision engineering, reliability, and convenience — backed by a 1-year manufacturer’s guarantee.
Technical Specification
- Brand: Bosch
- Model No.: HEZ9VDSB4
- Type: Ducting Kit (Flat Vertical 90° Bend – Small)
- Product Type: Ducting
- Construction: 90° Flat Duct Bend Element (Male)
- Configuration: Vertical with Very Small Radius (for 60cm Worktop Depth)

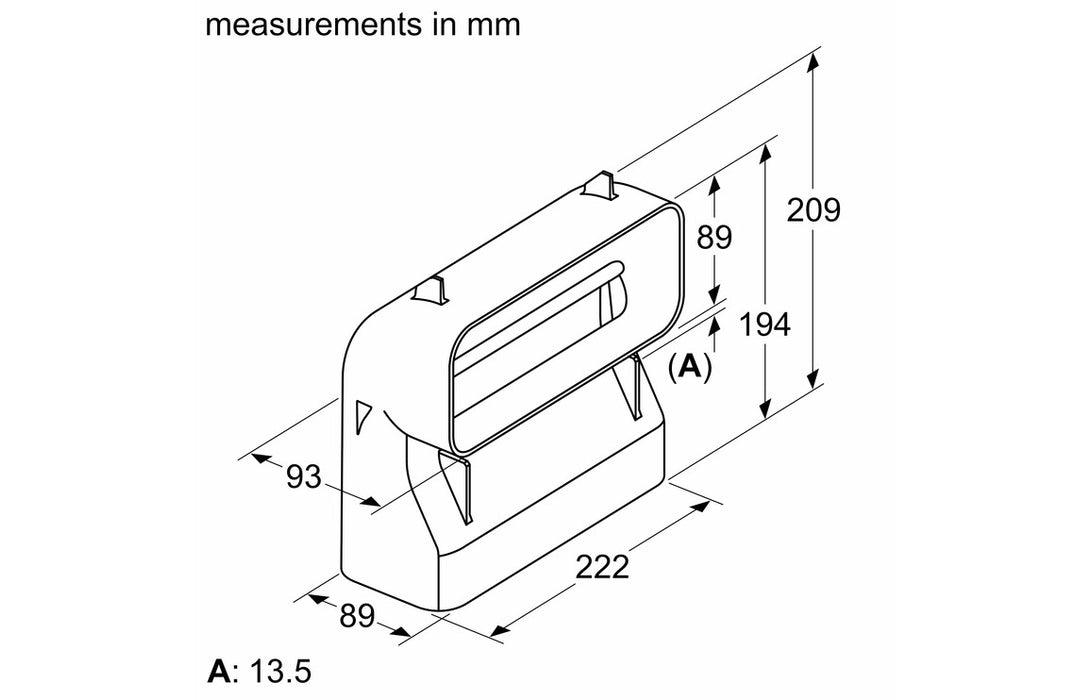

- Dimensions: H 93 x W 222 x D 209mm
- Ducting Colour: Black
- Ducting Material: Plastic
- Design Features: Aerodynamically Optimised for Minimal Pressure Loss & Maximum Airflow, Easy-to-Cut, Easy-to-Connect (via Female Connector Sleeve)
- Packaged Weight: 0.5kg
- Guarantee: 1 Year Manufacturer’s Warranty
- Barcode (EAN): 4242005286881
