Neff Z861KR1 60cm+ Recirculation Starter Kit

The Neff Z861KR1 60cm+ Recirculation Starter Kit is a high-quality accessory kit designed for partly ducted recirculation configurations of Neff cooktops with integrated ventilation modules. Ideal for kitchens with worktop depths of 60cm or larger, this kit includes all essential components needed for efficient, quiet, and reliable air recirculation. The diffusor element ensures even air distribution in the plinth area, while the flat duct elements and connector sleeves provide secure and airtight connections. Supporting installation heights up to 960mm, the Z861KR1 offers a professional, space-efficient solution for optimised airflow and modern kitchen ventilation.

Technical Specification

• Download Product Technical Data Sheet

• Product Type: Ducting
• Type: Ducting Kit
• Brand: Neff
• Model No.: Z861KR1

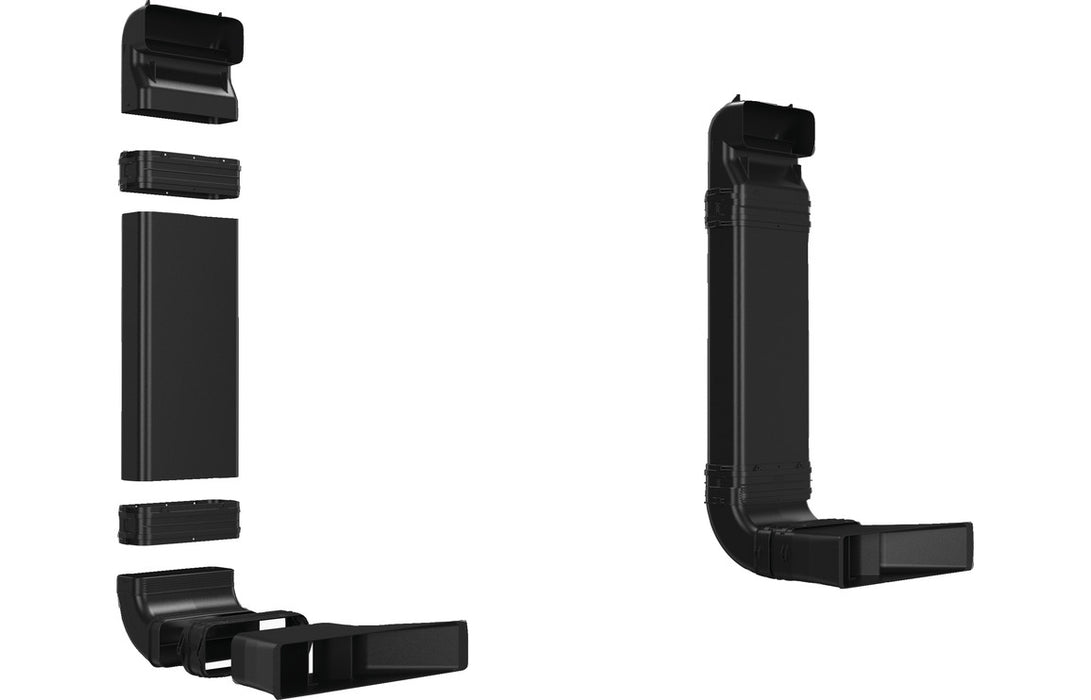

• Kit Contents:
  • 1 × Vertical 90° “S” bow flat duct element (male)
  • 1 × Vertical 90° “L” bow flat duct element (male)
  • 3 × Connector sleeves (female) for joining male flat duct elements
  • 1 × Straight tube element (male, 500mm)
  • 1 × Diffusor element for distributing outflowing air in the plinth area
• Application: For partly ducted recirculation configurations in kitchens with worktop depths ≥ 60cm
• Compatibility: Designed for Neff cooktops with integrated ventilation modules

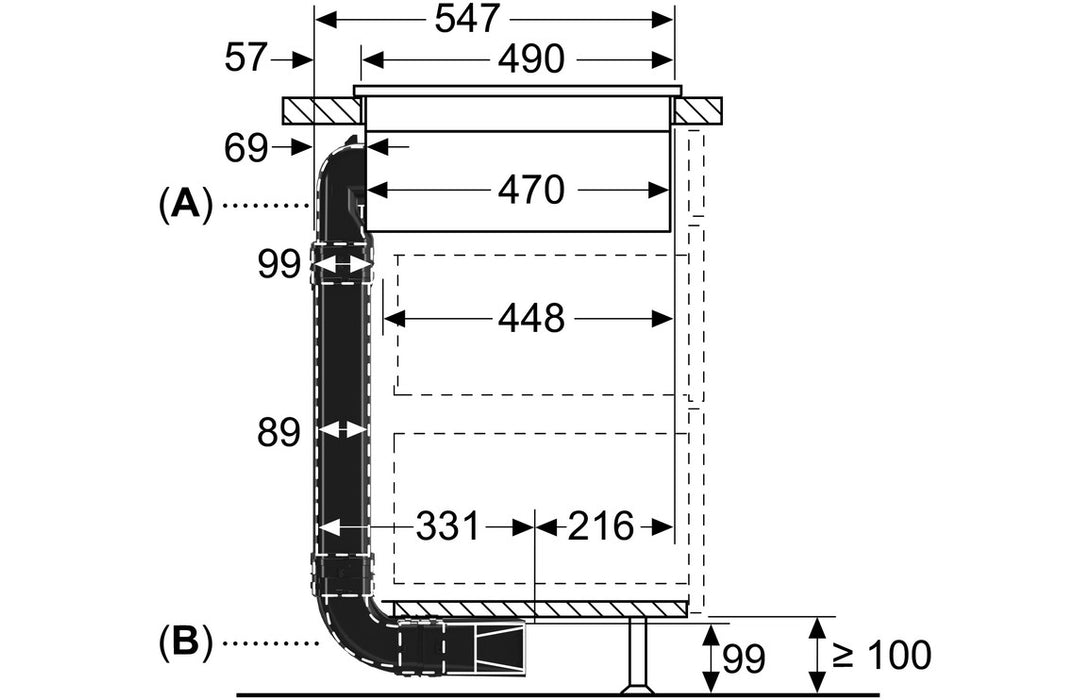

• Installation Height: Supports worktop heights up to 960mm
• Colour: Black
• Material: Plastic
• Design: Aerodynamically optimised for minimal pressure loss and maximum airflow efficiency
• Packaged Weight: 0.1kg
• Barcode (EAN): 4242004264682
• Manufacturer’s Guarantee: 1 Year
