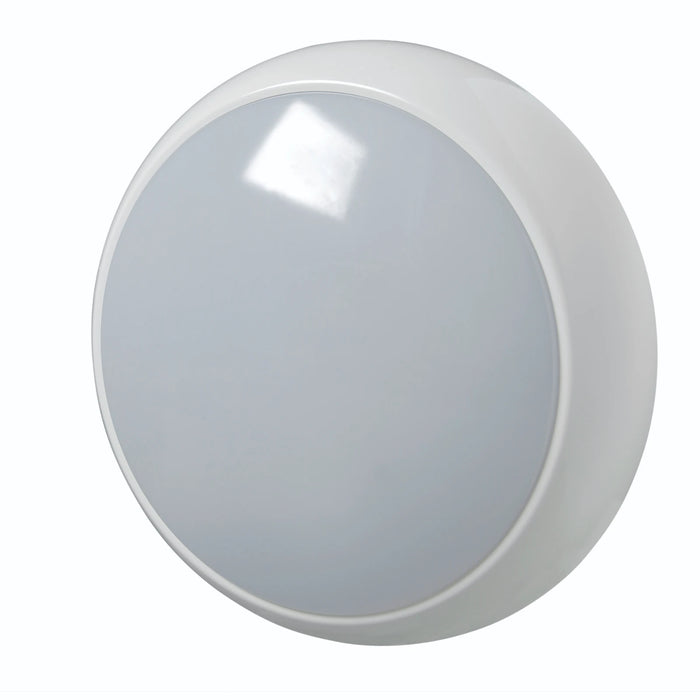

Emergency Golf LED Bulkhead 7.5W IP65 4000K Pro-Diffuser 272mm White

The Emergency Golf LED Bulkhead 7.5W is an advanced and energy-efficient lighting solution designed for use in a wide range of commercial and residential settings. With a high-quality LED design, this bulkhead provides reliable emergency lighting for areas that require dependable illumination, including retail shops, public buildings, sports centres, stairwells, corridors, and walkways. Featuring a Pro-diffuser, the Golf LED Bulkhead ensures a high-quality light output with minimal glare and even light distribution, making it ideal for safety and emergency purposes.

This 7.5W LED bulkhead offers an energy-efficient alternative to traditional 16W 2D fluorescent fittings. It provides an impressive 650 lumens while consuming only 7.5W of power, making it an economical lighting choice with a high efficacy of 90lm/W. Additionally, the bulkhead's IK09 impact rating and IP65 protection ensure its durability and performance in demanding environments.

With a 3-hour emergency discharge duration and a wide operating temperature range of -10°C to +35°C, this bulkhead is suitable for various applications, especially in locations requiring long-lasting and efficient emergency lighting. The 4000K colour temperature ensures clear, crisp illumination for optimal visibility.

Technical Specification

• Download Product Technical Data Sheet

• Power: 7.5W
• Light Output: 650 lumens
• Colour Temperature: 4000K (Cool White)
• Efficacy: 90lm/W
• IP Rating: IP65 (Water and dust resistant)
• Impact Rating: IK09 (Impact resistant)
• Diffuser: High-efficiency Pro-diffuser for low glare and even light distribution
• Emergency Duration: 3-hour discharge
• Housing: High-impact polycarbonate housing for durability
• Operating Temperature Range: -10°C to +35°C
• Mounting: Surface or recessed mounting options
• Voltage: 220-240V
• Power Factor: 0.9
• Rated Life: 50,000 hours
• Nominal Current: 45 mA
• Recess Height/Depth: 90mm
• Outer Diameter: 272mm
• Height/Depth: 90mm
• Function: Escape route lighting

Key Features

• Energy Efficient: Replaces 16W fluorescent fittings with only 7.5W power consumption
• Reliable Emergency Lighting: Provides 3-hour emergency discharge duration
• Durable Construction: IK09 impact rating and IP65 rated for high durability
• Pro-diffuser: Ensures even light distribution, low glare, and maximum light transmission
• High Efficacy: 90lm/W efficiency for cost-effective operation
• Wide Ambient Temperature Range: Operates from -10°C to +35°C for versatile use
• Long Lifespan: 50,000 hours rated life for low maintenance

Applications

This Golf LED Bulkhead is an excellent choice for emergency lighting in retail shops, public buildings, sports centres, corridors, stairwells, walkways, and communal areas. It provides essential escape route lighting with long-lasting and efficient performance.
