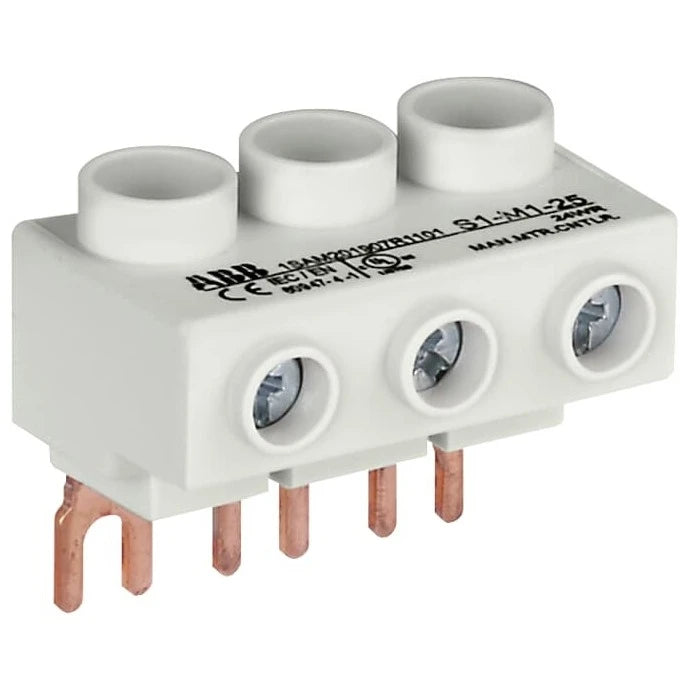

The S1-M1-25 Power Infeed Block is a high-quality 3-phase feeder terminal, designed to provide a reliable power connection for MS116 and MS132 systems. Perfect for industrial and commercial applications, this flat power infeed block ensures easy installation and secure connections. It is compatible with a wide range of conductors, including fine-strand and extra fine-strand conductors without the need for cable end sleeves, offering flexibility and versatility.
Technical Specification
-
Download Product Technical Data Sheet
- Type: Power Infeed Block
- Application: 3-Phase Feeder Terminals
- Compatibility: Fits MS116 and MS132 Main Line Branch Terminal
- Conductor Cross Section (Input): 14 - 4 AWG
- Conductor Cross Section (Output): 2.5 - 25 mm²
- Number of Outputs: 3
- Number of Inputs: 3
- Number of Poles: 3
- Nominal Current: 65A
- Contact Safe: Yes
- Suitable for Solid Cores: Yes
- Suitable for Stranded Conductors: Yes
- Suitable for Extra Fine-Strand Conductors without Cable End Sleeve: Yes
-
Dimensions:
- Height: 38 mm
- Width: 44 mm
- Depth: 25.5 mm
The S1-M1-25 Power Infeed Block offers secure and efficient connections for high-performance electrical systems, ensuring a safe, durable, and cost-effective solution for your power distribution needs.
