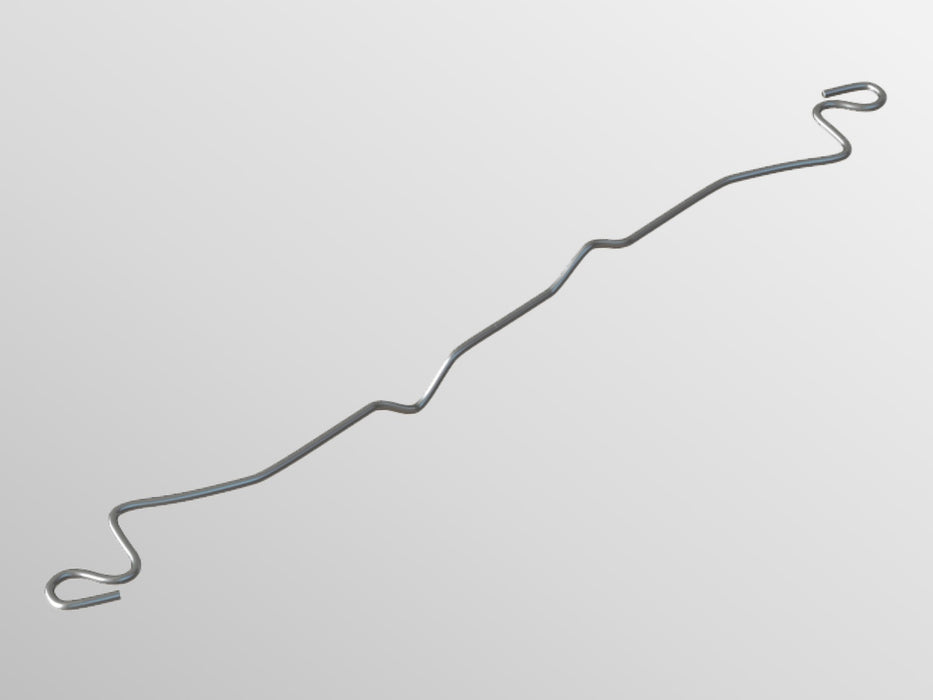

EN2 General Purpose Wall Ties

The EN2 General Purpose Wall Tie is designed for use in domestic dwellings and small commercial buildings up to 15m in height, with cavity widths ranging from 50mm to 125mm. Ideal for flat sites with wind speeds up to 31m/s, the EN2 features a multidrip design that helps prevent moisture transfer and allows for easy installation in either orientation. Made from durable grade 304 stainless steel, the EN2 ensures long-lasting performance and corrosion resistance in general-purpose applications.

Technical Specification

• Data Sheet
• Technical Drawing
• DOP
• DOP
• DOP
• BBA Approved general purpose wall ties (Agrément Certificate: 17/5462)
• Application: Suitable for domestic and small commercial buildings up to 15m high, on flat sites with wind speeds up to 31m/s
• Design: Multidrip feature to prevent moisture transfer; installable either way up
• Material: Grade 304 stainless steel
• Behaviour in relation to fire: Non-combustible
• Durability: Excellent corrosion resistance with a service life of not less than 60 years
• Thermal performance: Effectively resists thermal transmittance through wall cavities
• Compliance: Tested as Type B (sound) and Type 2 (strength) to BS EN 845-1
• Specification: Available on the NBS Source platform
