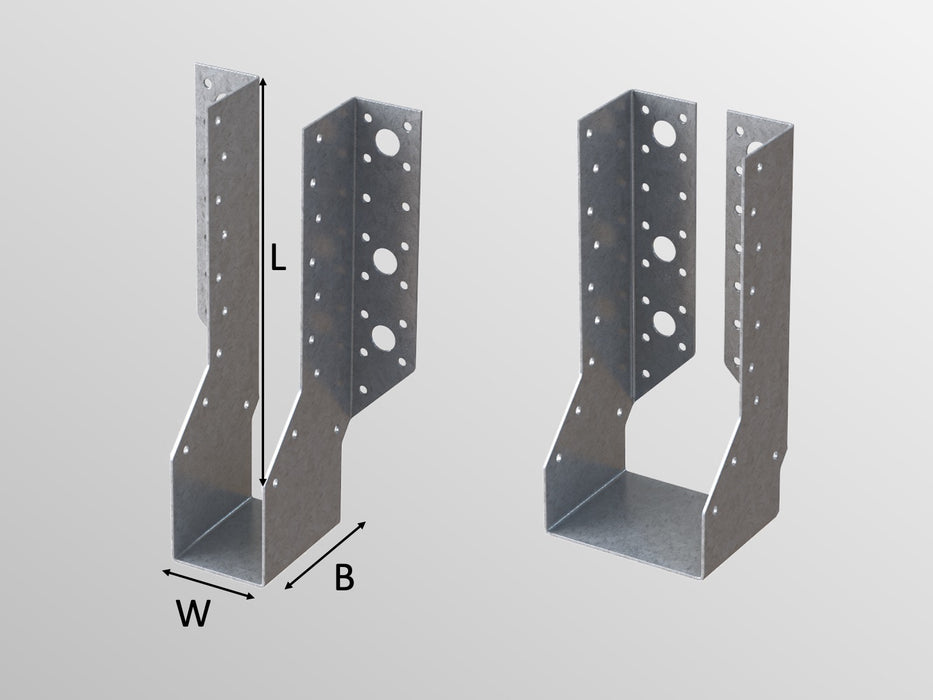

MTH/500 Multi-Truss Hanger & MTH/CF/500 concealed flange

MTH/500 Multi-Truss Hanger & MTH/CF/500 Concealed Flange are engineered for high-load structural applications, such as supporting multiple truss units, main trimmer joists, and purlin-to-beam connections. These heavy-duty hangers are built for strength and reliability, with the MTH/CF/500 variant featuring folded-in face plates for a clean, concealed fixing solution where aesthetics and discretion are important. Ideal for demanding construction environments requiring superior load performance.

Technical Specification:

• Data Sheet
• Application: Heavy-duty timber-to-timber or timber-to-steel/masonry connections
• Material: Manufactured from 1.5mm thick galvanised steel to BS EN 10346:2009 + G275; stainless steel option available on request
• Fixing Details: Bolt hole sized for M12 fixings; nail holes are 5mm diameter
• Fixing Options:
• Type A: 30mm x 3.75mm sheradised square twist nails (manual installation)
• Type B: 35mm x 3.75mm sheradised square twist nails (collated for use with nail guns)
