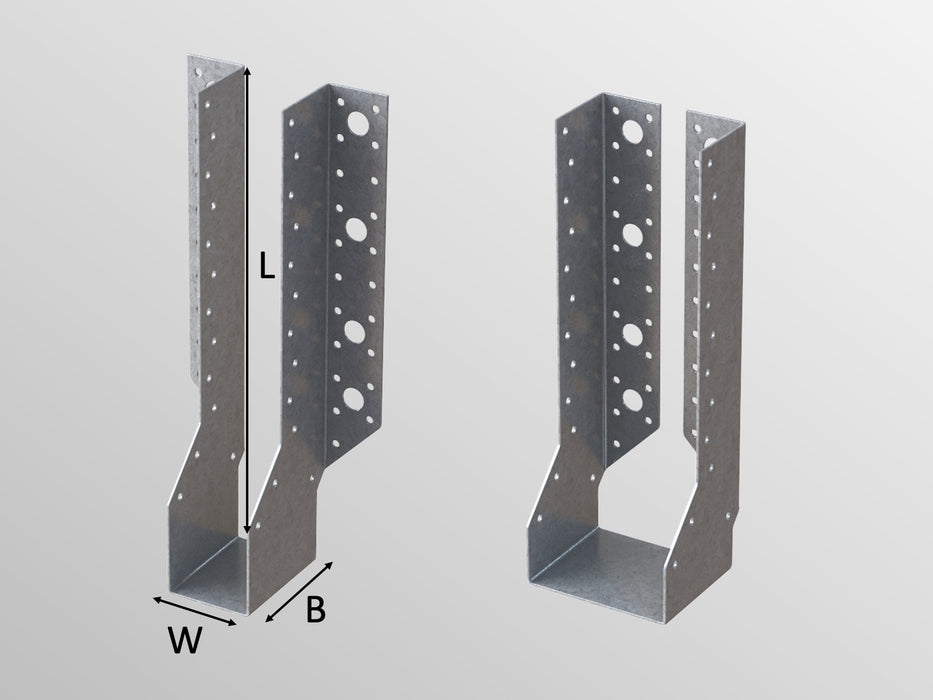

MTH/620 Multi-Truss Hanger & concealed flange

The MTH/620 Multi-Truss Hanger and MTH/CF/620 Concealed Flange are designed for robust support in heavy-duty structural applications. Ideal for securing multiple truss units, main trimmer joists, or purlin-to-beam connections, these hangers ensure strong and stable timber connections in demanding environments. The MTH/CF/620 variant features inward-folded face plates, offering a concealed fixing option for projects where clean aesthetics are important without compromising structural integrity.

Technical Specification:

• Data Sheet
• Application: Heavy-duty use for timber-to-timber, timber-to-masonry, or timber-to-steel connections
• Material: Manufactured from 1.5mm thick galvanised steel to BS EN 10346:2009 + G275 as standard; stainless steel option available on request
• Bolt Hole: Suits M12 fixing
• Nail Holes: 5mm diameter
• Fixing Options:
  • Type A – 30mm x 3.75mm Sheradised Square Twist Nails (manual fixing)
  • Type B – 35mm x 3.75mm Sheradised Square Twist Nails (collated for nail gun fixing)
