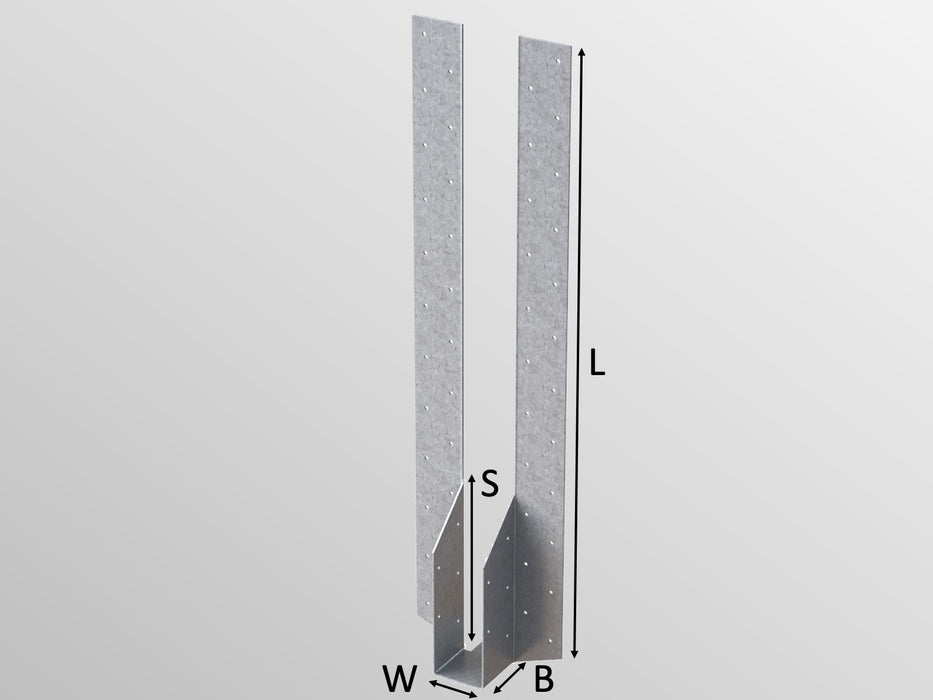

B610 Medium Duty Hanger (Long Leg)

B460 Medium Duty Hanger (Long Leg) (V81-Long) is a durable and versatile timber-to-timber hanger, engineered for medium-duty applications including solid joist and I-Beam installations. Manufactured from 1.5mm thick pre-galvanised steel with robust 50mm wide legs, this long leg hanger is suitable for face fixing or wrapping over supporting joists. Ideal for loft conversions, it supports a maximum drop of 75mm below the beam. A built-in location tab at the base ensures quick and accurate alignment, making installation faster and more precise.

Technical Specification:

• Data Sheet
• Application: Medium duty long leg hanger for solid joists and I-Beams
• Material: Produced from 1.5mm thick pre-galvanised steel to BS EN 10346:2009 DX51D + G275 (stainless steel available on request)
• Leg Design: 50mm wide long legs for enhanced load transfer and stability
• Installation: Suitable for face fixing or wrapping over supporting joists
• Special Use: Max recommended drop of 75mm below the beam for loft conversions
• Alignment: Integrated location tab on hanger base for precise placement
• Fixing Options:
  • Type A: 30mm x 3.75mm sheradised square twist nails (manual fixing)
  • Type B: 35mm x 3.75mm sheradised square twist nails (collated for nail gun fixing)
