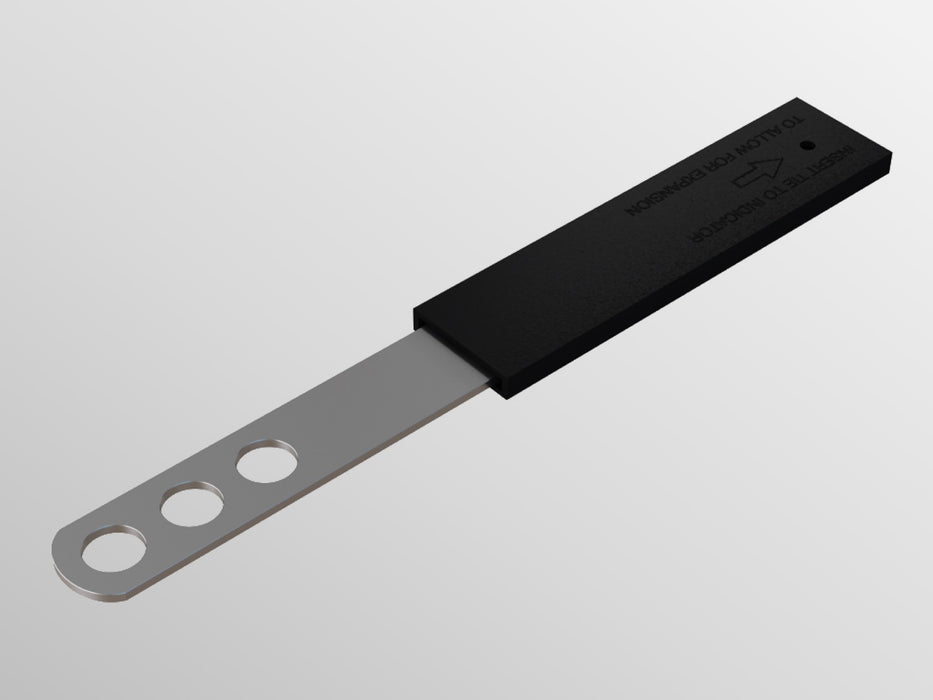

SPE/B20 Safety Plain End Tie/Blank

The SPE/B20 Safety Plain End Tie/Blank is designed for use over movement joints in continuous runs of brickwork or blockwork, providing essential flexibility and structural support. This versatile wall tie is available with a safety embedment detail or plain end (B20), allowing it to accommodate a range of construction requirements. Manufactured from durable grade 304 stainless steel, the SPE/B20 ensures long-term performance with high corrosion resistance. Sleeves are supplied separately. Ideal for maintaining structural integrity across movement joints, this tie meets shear load performance standards and is fully compliant with BS EN 846-7:2012.

Technical Specification

• Data Sheet
• Technical Drawing
• DOP
• Design: Used over a movement joint in a run of brickwork or blockwork with safety embedment detail or plain end (B20). (Sleeve supplied as extra).
• Material: Manufactured from grade 304 stainless steel.
• Fire Resistance: Non-combustible (as defined in the national Building Regulations).
• Durability: Excellent corrosion resistance and a service life of not less than 60 years.
• Compliance: Tested in shear to BS EN 846-7:2012. Shear Load Capacity: 2060N.
• Specification: Available for specification on the NBS Source platform.
