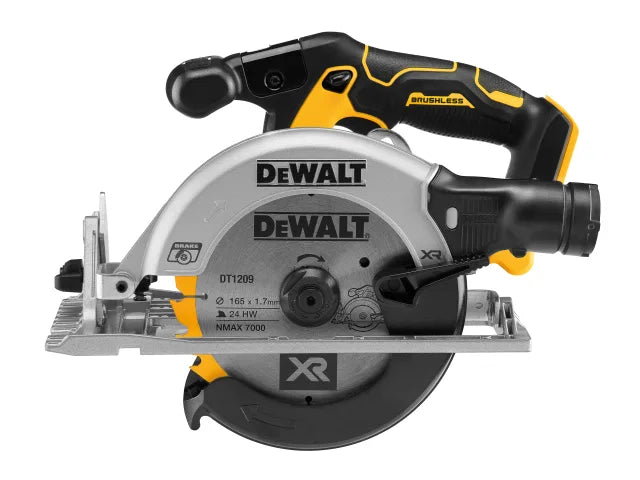

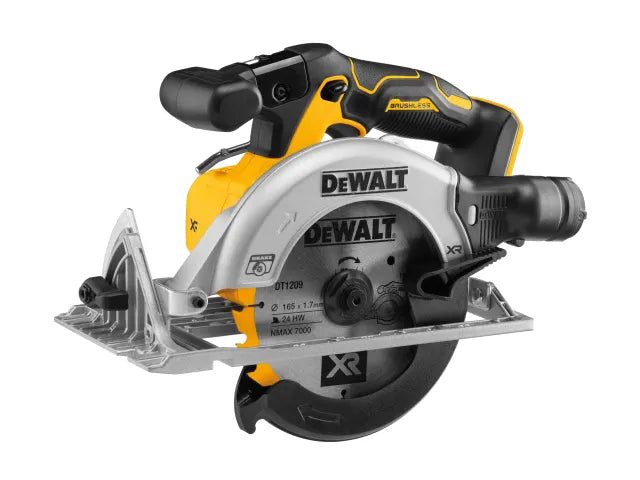

DCS565N XR Brushless Circular Saw 18V Bare Unit

The DEWALT DCS565 XR Brushless Circular Saw is a high-performance 18V cordless saw engineered for power, precision, and durability on demanding job sites. Its efficient brushless motor delivers extended runtime and long service life, while the lock-off switch and electronic motor brake provide enhanced control and safety during operation. Designed for accuracy and comfort, it features a cast aluminium base for repetitive, precise cuts, excellent balance for fatigue-free use, and an additional front handle for secure two-handed control. Cut-line visibility is improved with an integrated dust blower and bright LED work light, and a built-in rafter hook offers convenient on-site storage. Supplied with an ultra-thin kerf 165mm carbide-tipped blade for fast, smooth cuts and efficient runtime, this bare unit is compatible with the DEWALT AirLock system for quick, secure dust extraction connections.

Technical Specification

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Power source: Cordless 18V
• Battery supplied: Bare unit (no battery or charger)
• Motor type: Brushless
• No load speed: 4,950/min
• Blade diameter: 165mm
• Bore diameter: 20mm
• Maximum cutting depth at 90°: 55mm
• Maximum cutting depth at 45°: 42mm
• Bevel capacity: Up to 50°
• Base: Cast aluminium for accuracy and durability
• Safety features: Lock-off switch, electronic motor brake
• Visibility features: LED work light, dust blower
• Dust extraction: DEWALT AirLock compatible
• Additional features: Front auxiliary handle, integrated rafter hook
• Supplied with: Ultra-thin kerf 165mm 24T carbide-tipped blade
• Weight: 2.8kg (without battery)
• Manufacturer code: DCS565N-XJ
• Barcode: 5035048739969
• Boxed weight: 3.702kg
• Dimensions: 242mm (W) x 389mm (H) x 208mm (D)
