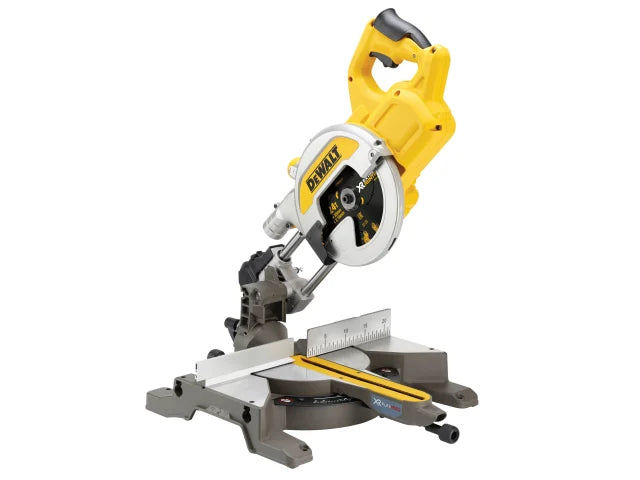

DCS777N XR FlexVolt Mitre Saw 216mm 54V Bare Unit

The DEWALT DCS777N XR FlexVolt Mitre Saw is a powerful and highly accurate 54V cordless sliding compound mitre saw designed for professional cutting applications. Featuring XPS Shadow Line cut technology, it delivers fast and precise blade alignment while illuminating the workpiece with no calibration required. The precision-machined base and fence meet the accuracy demands of high-end applications, while the head lock function allows the saw head to be fixed in position for trim work and easier transport. Integrated positive mitre stops, a sliding left-hand fence with measuring scale, and a compact internal rail design provide a large cutting capacity while remaining easy to transport. Supplied as a bare unit, it is ideal for users already invested in the FlexVolt battery platform from DEWALT Power Tools.

Technical Specification

Download Product Technical Data Sheet

Download Product Technical Data Sheet

• Power source: Cordless 54V XR FlexVolt
• Type: Sliding compound mitre saw
• Battery supplied: Bare unit – no battery or charger included
• No load speed: 6,300 rpm
• Blade diameter: 216mm
• Bore size: 30mm
• Max depth of cut: 80mm
• Cutting capacity at 90°/90°: 270 x 62mm
• Cutting capacity at 90°/45°: 270 x 48mm
• Cutting capacity at 45°/90°: 190 x 62mm
• Cutting capacity at 45°/45°: 190 x 48mm
• Mitre capacity: 50° right / 50° left
• Bevel capacity: 48°
• Mitre stops: 15°, 22.5°, 30°, 45°
• Fence: Sliding left-hand fence with measuring scale
• Rail design: Compact internal rails for high capacity and transportability
• Head lock: Yes, for trim applications and transport
• Tool weight: 14kg
• Product weight: 16.03kg
• Manufacturer code: DCS777N-XJ
• Barcode: 5035048651087
• Suitable for: First fix, second fix, trim work, and high-accuracy crosscut and mitre cutting applications
