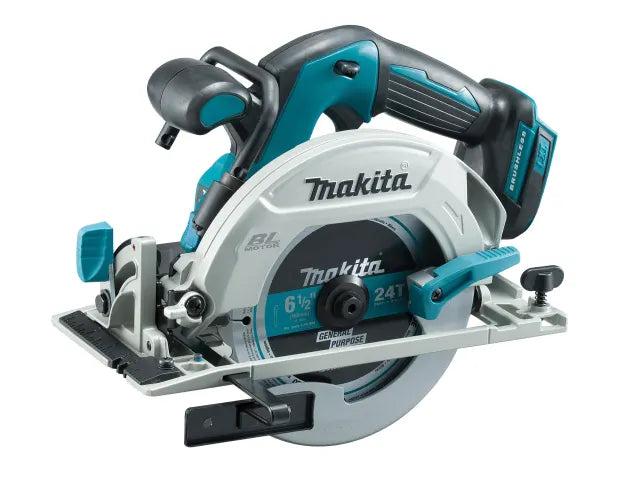

DHS680Z Brushless Circular Saw 165mm 18V Bare Unit

The Makita DHS680Z Brushless Circular Saw 18V is a high-performance, compact cutting solution designed for professional trades and demanding site work. Powered by an advanced brushless motor, it features Automatic Speed Control technology that intelligently adjusts cutting speed based on load conditions, delivering high-speed rotation for light-duty tasks and increased torque for heavier cuts. Its lightweight and well-balanced design is achieved through a downsized motor, optimised internal layout and the use of durable magnesium die-cast components for the base, blade case and safety cover. This results in excellent manoeuvrability, reduced user fatigue and consistent cutting accuracy across a wide range of materials. Supplied as a bare unit, the DHS680Z is ideal for users already invested in the Makita 18V LXT battery platform.

Technical Specification

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Power Source: Cordless 18V
• Battery Supplied: Bare Unit (No Battery or Charger)
• Motor Type: Brushless with Automatic Speed Control
• No Load Speed: 5,000/min
• Blade Size: 165 x 20mm bore
• Cutting Depth: 57mm @ 0°, 41mm @ 45°, 37mm @ 50°
• Base & Guard Material: Magnesium die-cast
• Weight: 3.3kg
