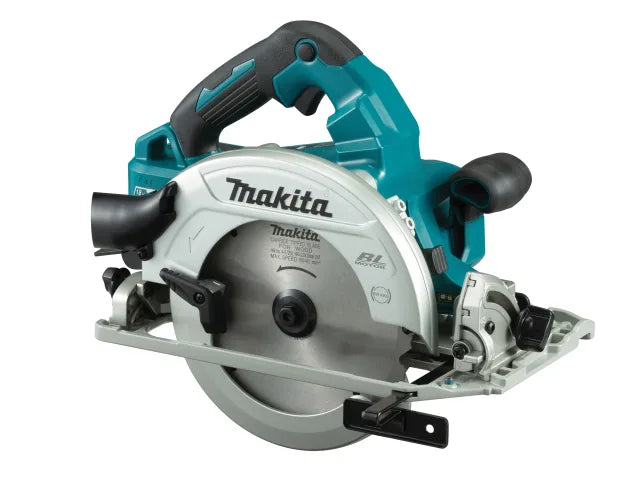

DHS783ZJU AWS Brushless Circular Saw 190mm 36V (2 x 18V) Bare Unit
excl. VAT
💳 0% APR Finance Available*
The Makita DHS783ZJU AWS Brushless Circular Saw 190mm 36V (2 x 18V) Bare Unit delivers exceptional cutting power comparable to a corded AC saw, making it ideal for demanding professional applications. Powered by two 18V LXT batteries working in series to provide 36V performance, this brushless circular saw features Automatic Torque Drive Technology (ADT) which automatically adjusts cutting speed under load for optimum efficiency and clean results. A positive stop at the 45° bevel angle allows quick and accurate repetitive cuts, while the magnesium die-cast base plate offers increased precision, durability and improved visibility of the blade tip. For enhanced user safety, the saw is fitted with an electric brake and overload warning lamp, alongside an LED job light for clear visibility in low-light conditions. Integrated Auto-Start Wireless System (AWS) connects via Bluetooth® to compatible dust extractors, automatically activating extraction while the saw is in use to maintain a cleaner working environment. Guide rail compatible without the need for an adaptor, the DHS783ZJU is supplied as a bare unit with no battery or charger included, making it perfect for users already invested in the Makita LXT platform.
Technical Specification
Download Product Technical Data Sheet
Download Product Technical Data Sheet
• Manufacturer: Makita
• Model: DHS783ZJU
• Type: AWS Brushless Circular Saw
• Power Source: Cordless 36V (2 x 18V LXT batteries required)
• Battery Supplied: No – Bare Unit
• Motor Type: Brushless
• No Load Speed: 6,000 rpm
• Blade Diameter: 190mm
• Bore Size: 20mm / 30mm
• Cutting Depth at 0°: 62.5mm
• Cutting Depth at 45°: 44.5mm
• Cutting Depth at 48°: 42mm
• Technology: Automatic Torque Drive Technology (ADT), Auto-Start Wireless System (AWS)
• Safety Features: Electric brake, overload warning lamp
• Base Plate: Magnesium die-cast
• Bevel Feature: Positive stop at 45°
• Lighting: Integrated LED job light
• Guide Rail Compatible: Yes, without adaptor
• Machine Weight: 4.5kg
• Boxed Weight: 6.973kg
• Dimensions (W x H x D): 320mm x 395mm x 295mm
• Manufacturer Code: DHS783ZJU
• Barcode: 0088381879774
• Stock Code: MAKDHS783ZJU
• Minimum Order Quantity: 1
• Box Quantity: 1
• WEEE Code: 6
• Quality Assurance: ISO9000 compliant
