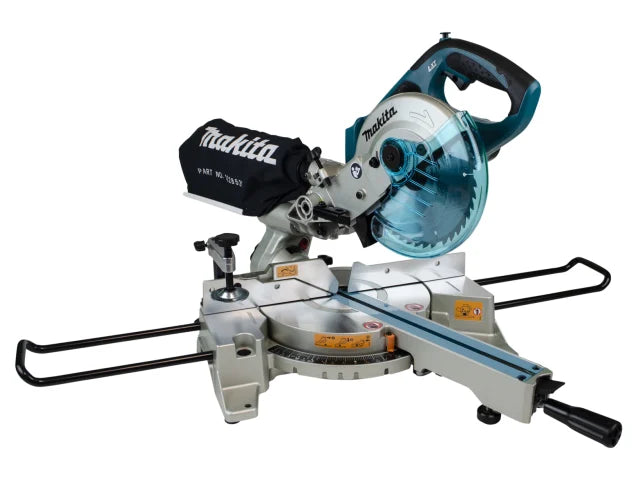

DLS713NZ Slide Compound Mitre Saw 18V Bare Unit

The Makita DLS713NZ 18V Slide Compound Mitre Saw is a compact and highly portable cordless mitre saw designed for precise cutting and easy transportation on site. Featuring a double sliding mechanism with a 4-pole slide construction, it delivers smooth, vibration-free operation for accurate and consistent cuts. Its lightweight and compact design makes it ideal for installers, joiners and site work where mobility is essential. For added user safety and control, the saw is equipped with an electric brake to stop the blade quickly after use. Supplied as a bare unit, the DLS713NZ is perfect for professionals already using the Makita 18V battery platform.

Technical Specification

Download Product Technical Data Sheet

Download Product Technical Data Sheet

• Type: Sliding Compound Mitre Saw
• Power Source: Cordless 18V
• Battery Supplied: No (Bare Unit)
• No Load Speed: 2,200/min
• Blade Diameter: 190mm
• Bore Diameter: 20mm
• Max Bevel Range: 45° Left / 5° Right
• Max Mitre Range: 45° Left / 57° Right
• Depth of Cut @ 90°: 52mm
• Depth of Cut @ 45°: 25mm
• Double sliding mechanism with 4-pole slide construction for vibration-free cutting
• Electric brake for increased user safety
• Compact and lightweight design for easy transportation
• Net Weight: 12.7kg
• Product Weight: 17.691kg
• Dimensions (W x H x D): 515 x 685 x 355mm
• Manufacturer Code: DLS713NZ
• Stock Code: MAKDLS713NZ
• Barcode: 0088381876995
• Box Quantity: 2
• Minimum Order Quantity: 1
• Quality Assured: ISO9000
• WEEE Code: 6
