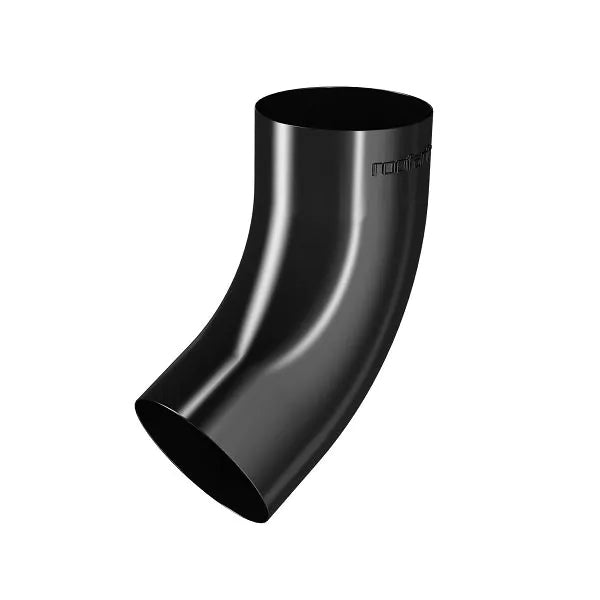

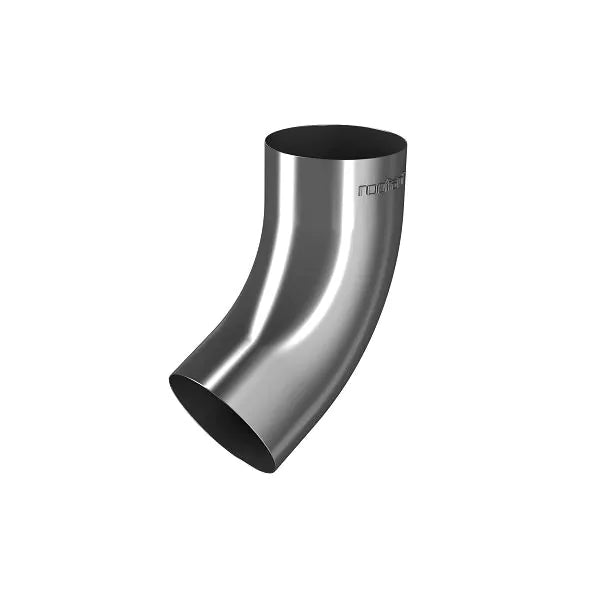

RoofArt Scandic Rainwater System - 100mm Diameter - Steel 60° Downpipe Bend

The 100mm Galvanised 60° Downpipe Bend offers a practical solution for redirecting water flow in your rainwater management system. Designed for flexibility and durability, this component ensures a seamless connection between outlets and pipes while navigating obstacles with ease.

Key Information:

• Versatile Design: Male and female ends connect directly to outlets or straight pipes without requiring additional connectors.
• Swan-Neck Configuration: Use two bends with a short pipe segment to create a swan-neck, bringing the downpipe closer to the wall.
• Directional Flexibility: Perfect for changing water flow direction around obstructions or between levels.
• Effortless Installation: Simple push-fit design ensures a secure and hassle-free assembly.
• Durable Construction: Made from galvanised steel for superior impact resistance and longevity.
• Sustainable Material: Fully recyclable steel for eco-conscious construction.
• Manufacturer's Warranty: Backed by a 5-year warranty for added confidence.

Technical Specification:

• Diameter (Top End): 100mm
• Diameter (Bottom/Male End): 98mm
• Bend Degree from Vertical: 60°
• Bend Degree from Horizontal: 30°
• Material: Galvanised Steel - or painted black.
• Material Thickness: 0.7mm

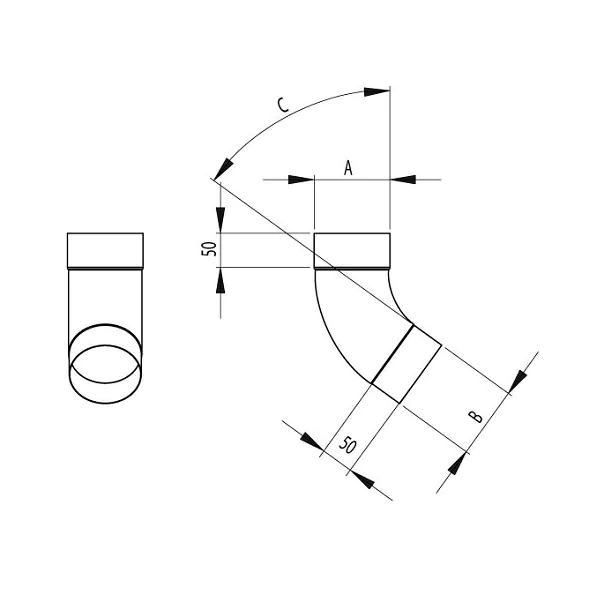

• Dimensions (See Drawing):
  • Dim A: 100mm
  • Dim B: 98mm
  • Dim C: 60° angle
  • Dim D: 50mm

Choose the 100mm Galvanised 60° Downpipe Bend for a reliable, durable, and adaptable rainwater management solution. Whether for residential or commercial use, this component ensures efficient water drainage while maintaining a clean and professional appearance.
