RoofArt Scandic Rainwater System - 100mm Diameter - Steel Manual Rainwater Diverter

The 100mm Galvanised Downpipe Branch is a practical solution for managing multiple water drainage sources by merging two columns into a single outlet. Designed with precision and durability, it reduces the need for additional drainage systems, streamlining rainwater management while maintaining a stylish appearance.

Key Information:

• Efficient Water Management: Combines two downpipes into one, minimizing the need for separate drainage points.
• Optimized Branch Angle: 60° branch angle ensures effective water flow from the secondary downpipe.
• Easy Installation: Push-fit connection simplifies the setup process.
• Stylish Design: Neat and professional finish suitable for various building styles.
• Durable Material: Made from 0.7mm thick galvanised steel for impact resistance and long-lasting performance.
• Recyclable Construction: Environmentally friendly material available in versatile finishes to complement your aesthetic.

Technical Specification:

• Overall Height: 350mm
• Length of Socket (Male End): 40mm
• Effective Height: 310mm
• Diameter (Top/Female End): 100mm
• Diameter (Bottom/Male End): 98mm
• Material: Galvanised Steel
• Material Thickness: 0.7mm
• Manufacturer's Warranty: 5 Years

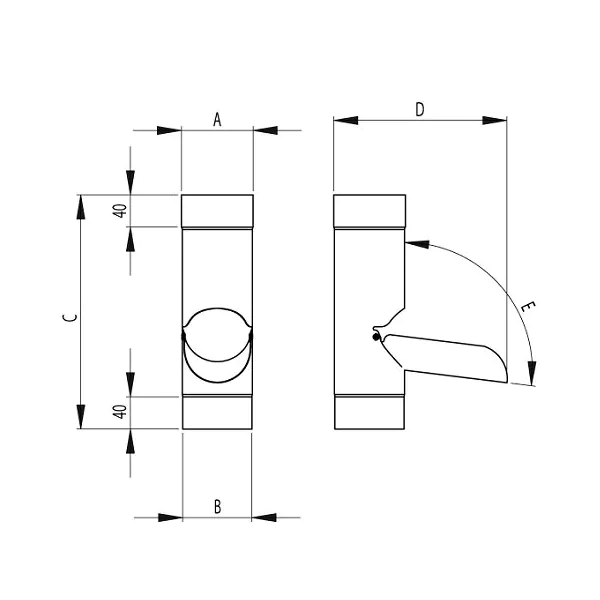

Dimensions (See Drawing):

• Dim A: 100mm
• Dim B: 98mm
• Dim C: 350mm
• Dim D: 230mm
• Dim E: 105° angle
• Dim F: 40° angle

The 100mm Galvanised Downpipe Branch offers a streamlined, cost-effective, and stylish solution for managing multiple rainwater sources efficiently.
