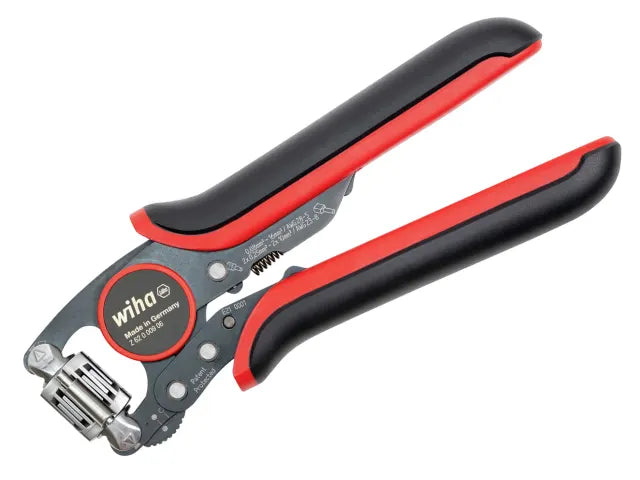

Automatic Crimp Tool

The Wiha Automatic Crimp Tool is a professional-grade solution for precise and reliable crimping of wire-end sleeves with and without insulating collars, manufactured in accordance with DIN 46228 and EN 50027 standards. Designed for maximum versatility, the 360° rotatable crimping head allows both front and side access in 45° increments, ensuring effortless operation even in confined or hard-to-reach installation areas. The crimping opening is accessible from both sides and supports wire-end sleeves up to 18mm in length. Covering an extensive crimping range from 0.08 to 16mm², this automatic crimp tool also accommodates twin wire-end sleeves up to 2 × 10mm², making it ideal for a wide variety of electrical applications. The automatic crimping function adjusts seamlessly to different conductor cross sections and ensures a complete, consistent crimp every time. Lightweight yet robust, the tool features toggle joint technology for high power transmission and is constructed from highly rigid special steel for long-lasting durability. Ergonomic soft handles with anti-slip protection provide comfortable, fatigue-free operation, while the integrated emergency release function allows the crimping process to be manually interrupted at any time. Manufactured by Wiha, this automatic crimp tool delivers precision, safety, and efficiency for professional electricians and installers.

Technical Specification

• Download Product Technical Data Sheet

• Tool Type: Automatic Crimp Tool
• Overall Length: 193mm
• Crimping Standards: DIN 46228, EN 50027
• Crimping Range: 0.08–16mm²
• Twin Sleeve Crimping Range: Up to 2 × 10mm²
• Wire-End Sleeve Capacity: Up to 18mm length
• AWG Range: 28–5 AWG

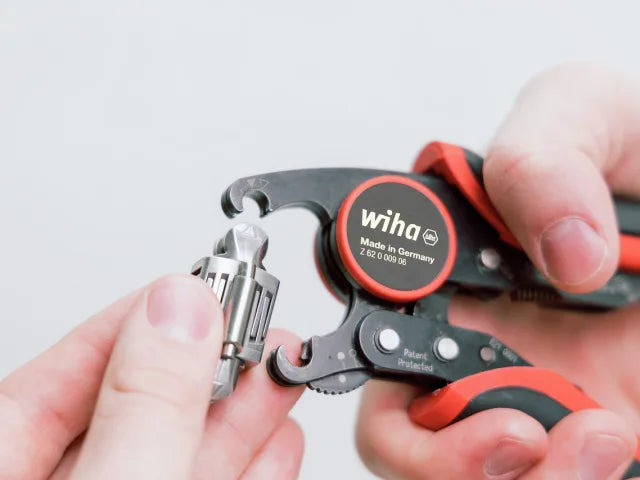

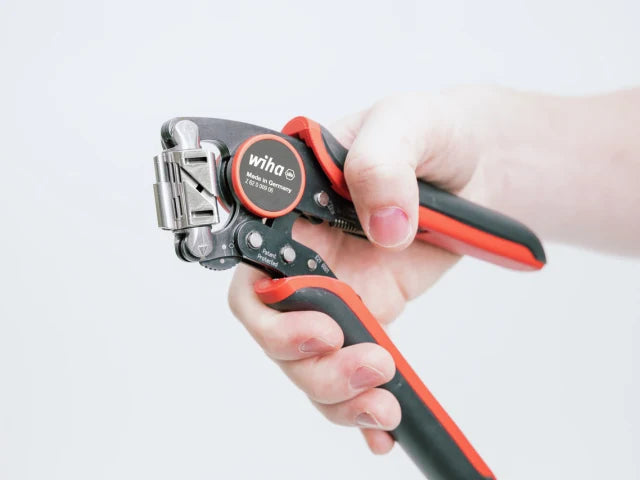

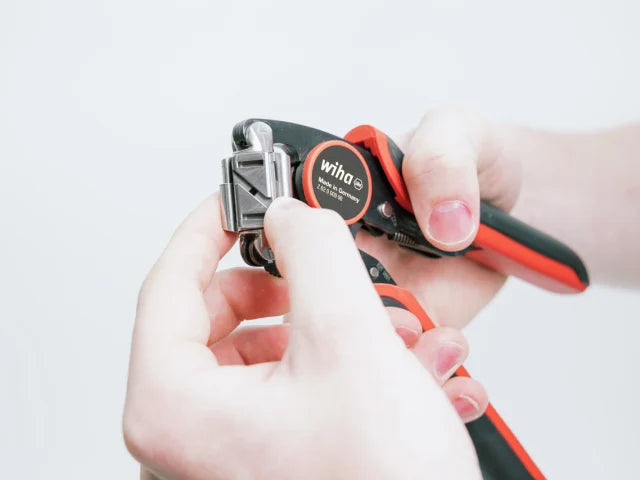

• Crimping Head: 360° rotatable with 45° indexing
• Access: Front and side access, crimping opening accessible from both sides
• Adjustment System: Automatic setting to conductor cross section
• Joint Technology: Toggle joint for high power transmission
• Handle Type: Ergonomic soft handles with anti-slip protection

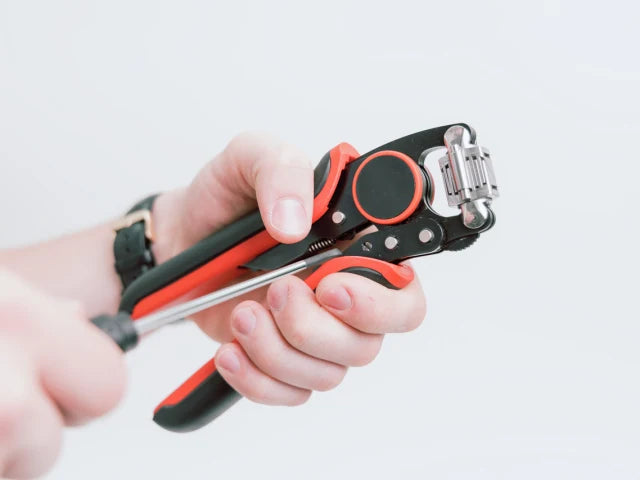

• Safety Feature: Emergency release function
• Manufacturer Code: 45223
• Stock Code: WHA45223
• Barcode: 4010995452230
• Product Weight: 0.530kg
• Box Quantity: 1
• Minimum Order Quantity: 1
• Dimensions (WxHxD): 44 × 260 × 30mm
• Quality Assurance: ISO9000
