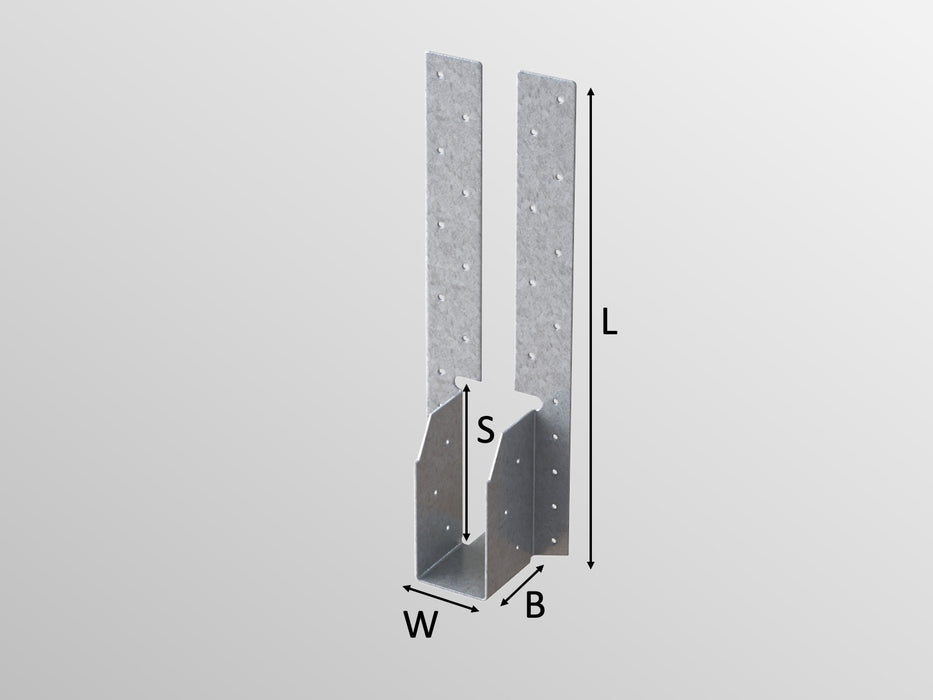

B340 Medium Duty Hanger (Standard Leg)

B340 Medium Duty Hanger (Standard Leg) is a robust and reliable timber-to-timber hanger designed for medium load applications, ideal for supporting joists up to 250mm deep. With 50mm wide legs for increased nail spacing and a built-in location tab at the base, this hanger ensures precise alignment and easy installation. Made from durable galvanised steel, it offers excellent performance in both residential and commercial construction projects. Suitable for face fixing and compatible with both manual and nail gun installations.

Technical Specification:

• Data Sheet
• Application: Medium duty timber-to-timber hanger for joist depths up to 250mm
• Material: Manufactured from 1.2mm thick galvanised steel to BS EN 10346:2009 DX51D + G275 (stainless steel available on request)
• Leg Design: Standard 50mm wide legs for enhanced load distribution
• Alignment: Built-in location tab on base for accurate positioning
• Fixing Options:
  • Type A: 30mm x 3.75mm sheradised square twist nails (manual fixing)
  • Type B: 35mm x 3.75mm sheradised square twist nails (collated for nail gun fixing)
• Suitable for face fixing applications
