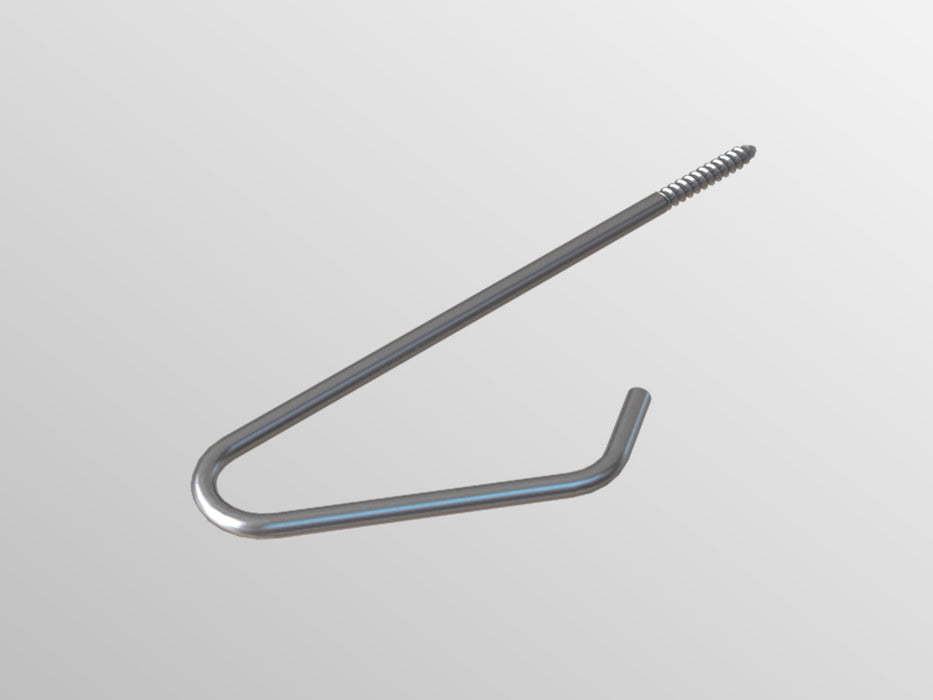

FT/145 Frame Tie

The FT/145 Frame Tie is designed for securely fixing timber door and window frames to brickwork by embedding into mortar courses as construction progresses. Suitable for buildings up to 8 metres or 3 storeys high, this wall starter tie offers a dependable solution for maintaining frame stability during and after build. Manufactured from grade 304 stainless steel, the FT/145 Frame Tie delivers long-lasting corrosion resistance and complies with fire safety standards, making it an ideal choice for both internal and external applications.

Technical Specification

• Data Sheet
• Technical Drawing
• Application – Used for fixing timber door and window frames to brickwork by building into mortar courses as construction progresses. Suitable for buildings up to a maximum of 8 metres or 3 storeys high.
• Design – Wall starter tie without drip feature; can be installed either way up.
• Material – Manufactured from grade 304 stainless steel.
• Behaviour in relation to fire – Non-combustible (as defined in the national Building Regulations).
• Durability – Excellent corrosion resistance and a service life of not less than 60 years.
• Thermal performance – Adequately resists thermal transmittance through a wall cavity where thermal losses through ties need to be considered.
