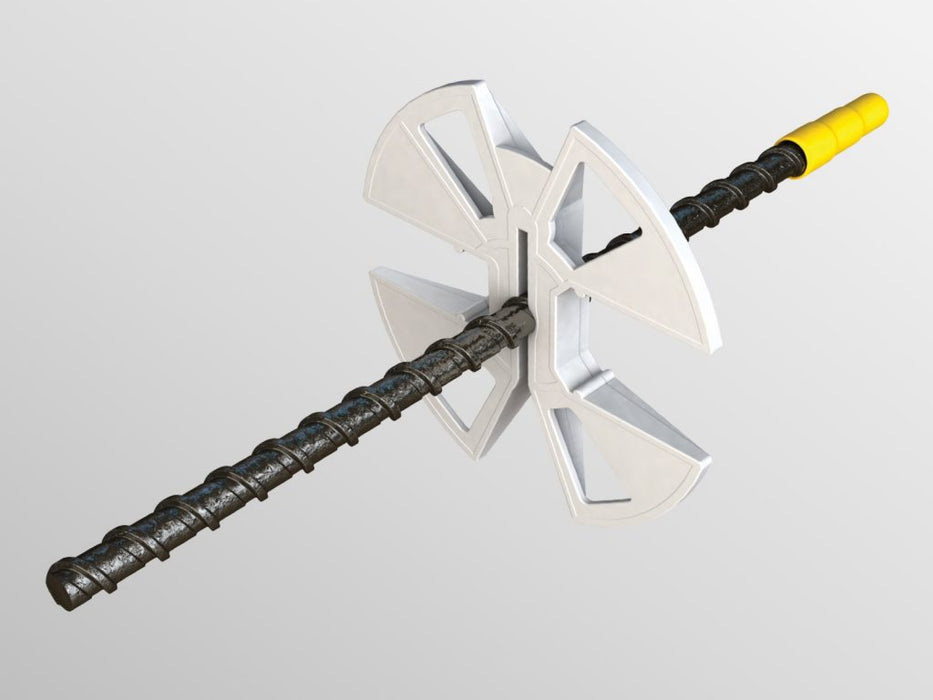

Neutras-4 low thermal conductivity wall ties

Neutras-4 light duty wall ties are engineered for superior thermal efficiency and structural performance. Their low thermal conductivity allows them to be excluded from U-value calculations under EN ISO 6946, making them an ideal solution for meeting updated energy efficiency regulations. Designed for domestic dwellings with cavity widths up to 175mm and a maximum building height of 10m, Neutras-4 ties provide long-term durability and reliable moisture control through an innovative constant-drip spiral design.

Technical Specification

• Data Sheet
• Technical Drawing
• DOP
• BBA Approved cavity wall ties (Agrément Certificate: 17/5462)
• Application: For box-form domestic dwellings up to 10m high, on flat sites with wind speeds up to 27m/s
• Design: Constant-drip spiral to prevent moisture transfer; can be installed either way up
• Material: Continuous basalt fibre and vinyl ester resin composite
• Durability: Service life of not less than 60 years
• Thermal performance: Effectively resists thermal transmittance; excluded from U-value calculations under EN ISO 6946
• Compliance: Tested as Type B (sound) and Type 4 (strength) to BS EN 845-1
• Specification: Available on the NBS Source platform
