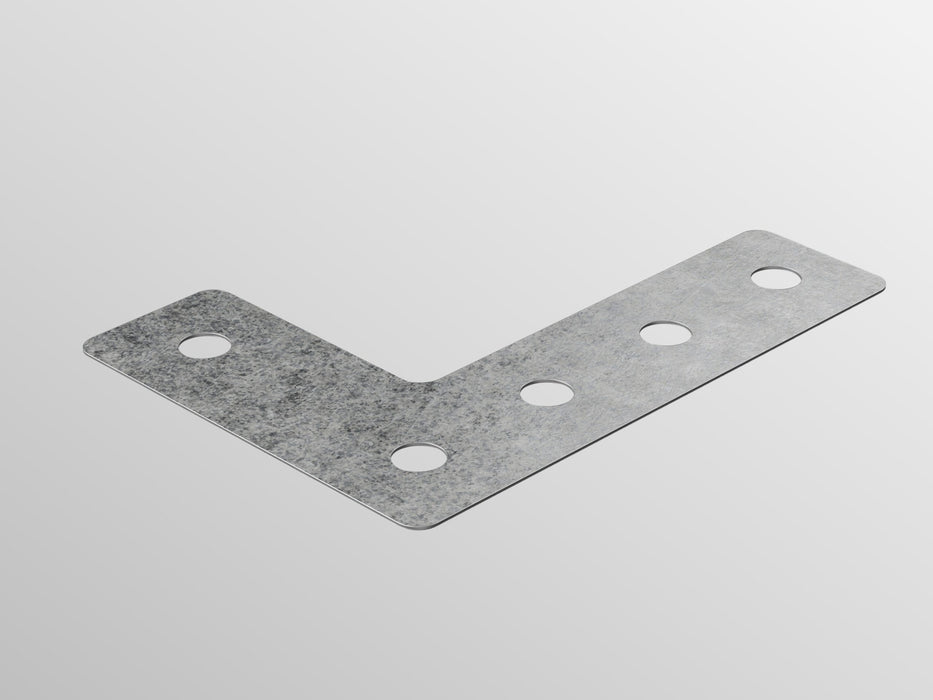

WINDOW REVEAL SUPPORT

The Window Reveal Support is a purpose-engineered stainless steel component designed to securely support the initial courses of brickwork in a full brick (215mm deep) window reveal during construction. This innovative support solution features a long leg plate that is built directly into the external leaf bed joint, creating a stable and reliable bearing surface for the reveal bricks. It ensures precise alignment and structural integrity, helping maintain clean lines and robust support around window openings. Ideal for masonry professionals seeking durable and compliant solutions for reveal detailing.

Technical Specification

• Data Sheet
• Design: Supports the first few bricks in a full brick (215mm deep) window reveal during construction. Designed for the long leg of the plate to be built into the external leaf bed joint, providing a stable bearing for the reveal brick.
• Material: Manufactured from grade 304 stainless steel.
• Behaviour in relation to fire: Non combustible (as defined in the national Building Regulations).
• Durability: Excellent corrosion resistance and a service life of not less than 60 years.
• Specification: Available for specification on the NBS Source platform.
