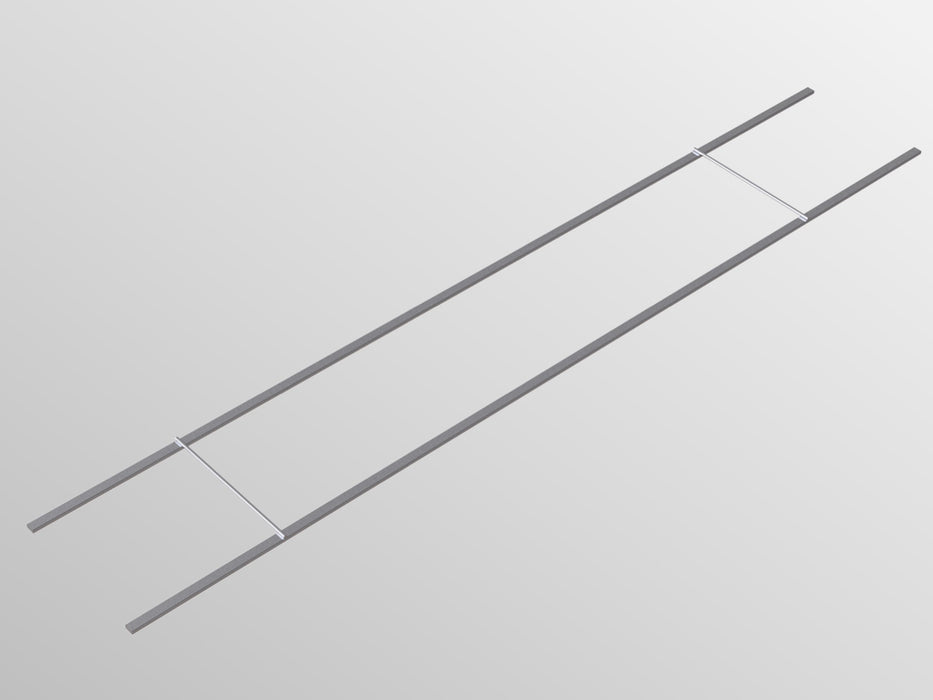

VW5 Vista Weld 5

The VW5 Vista Weld 5 is a heavy-duty welded ladder-type Bed Joint Reinforcement system designed to deliver superior structural performance and crack control in masonry walls. Engineered with robust 5mm flattened outer wires, it is ideal for structural applications where added strength and stability are required. VW5 Vista Weld 5 is available in a wide range of widths to accommodate all common brick and block sizes, making it a versatile choice for various construction projects. Manufactured in durable stainless steel or cost-effective galvanised steel, it offers long-lasting corrosion resistance and compliance with current building standards.

Technical Specification

• Data Sheet
• Technical Drawing
• DOP
• DOP
• DOP
• Design: Vista Weld 5 is a welded ladder type Bed Joint Reinforcement with 5mm flattened outer wires, generally used as a structural product, also ideal for crack control.
• Material: Manufactured from grade 304 S15 stainless steel. Also available in galvanised.
• Behaviour in relation to fire: Non combustible (as defined in the national Building Regulations).
• Durability: Excellent corrosion resistance and a service life of not less than 60 years.
• Compliance: Vista Masonry Reinforcement conforms to BS 5628 : Part 2 2000.
• Specification: Available for specification on the NBS Source platform.
