DVW Double Vista Weld

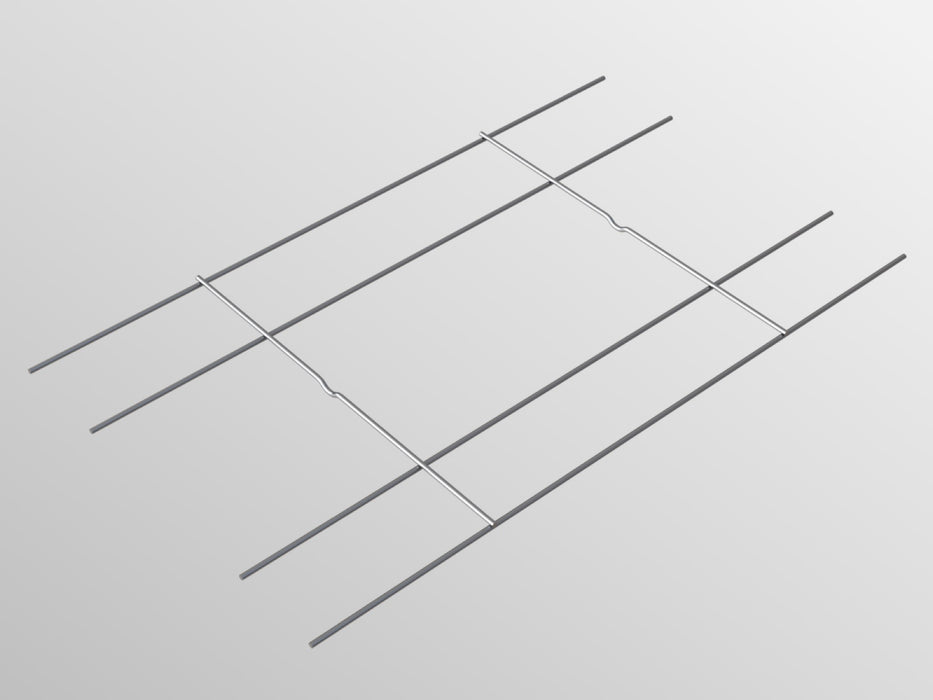

The DVW Double Vista Weld is a robust welded structural ladder-type masonry reinforcement system, purpose-built to reinforce both leaves of a cavity wall. Engineered for strength and reliability, it features 3.5mm main longitudinal wires and 3.6mm cross wires with an integrated drip for optimal moisture management. Each 2700mm length is available in a variety of widths, offering flexibility to meet diverse design specifications. Ideal for new build and renovation projects, DVW Double Vista Weld enhances wall stability while ensuring long-lasting performance and compliance with modern construction standards.

Technical Specification

• Data Sheet
• Technical Drawing
• Design: Double Vista Weld is a welded structural ladder type masonry reinforcement used to reinforce both leaves of a cavity wall. Manufactured with 3.5mm main longitudinal wires with 3.6mm cross wires (with a drip). Each length is 2700mm long and is available in numerous widths to suit individual design requirements.
• Material: Manufactured from grade 304 S15 stainless steel.
• Behaviour in relation to fire: Non combustible (as defined in the national Building Regulations).
• Durability: Excellent corrosion resistance and a service life of not less than 60 years.
• Specification: Available for specification on the NBS Source platform.
